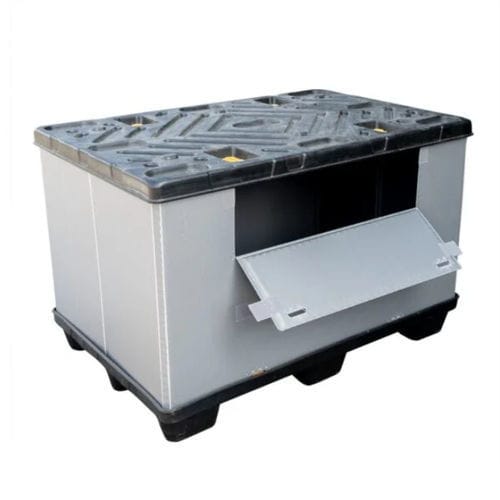

Polypropylene pallet box P1110.900.300

HDPEtransporthandling

Product overview
Reusable collapsible sleeve for pallet containers. Heights can be tailored to project requirements.

Available dimensions & standard sizes
Standard sizes (Outside / Inside):
800 * 600 / 730 * 530
1200 * 800 / 1135 * 735
1250 * 850 / 1200 * 800
1200 * 1000 / 1140 * 940
1230 * 1030 / 1175 * 970
1200 * 800 / 1130 * 730 (3 runners)
1200 * 1000 / 1130 * 930 (3 runners)

Container & long sizes
Outside / Inside:
1150 * 1150 / 1100 * 1100
1220 * 1150 / 1145 * 1100
1350 * 1150 / 1290 * 1090
1470 * 1150 / 1400 * 1080
1500 * 800 / 1440 * 740
1600 * 1150 / 1540 * 1080
1830 * 1130 / 1780 * 1065
2070 * 1150 / 2000 * 1080

Special sizes
Outside / Inside:
820 * 620 / 770 * 570
1100 * 1100 / 1050 * 1050
1100 * 1000 / 1035 * 935
1150 * 985 / 1100 * 930
1200 * 1060 / 1140 * 1000
1240 * 1200 / 1190 * 1150
1590 * 980 / 1530 * 920

Construction
WALLS: 10-11 mm thick, impact-resistant polypropylene (PP) laminated sheet material with cellular structure. Weight between 2.500 – 4.500 gr./m2 fitting to different load capacities.
EDGES: all rims are closed for hygiene and easy cleaning.
PALLET & LID: HDPE injection molding with double layer.
CONSTRUCTION: sleeve walls are inserted deep into the pallet edges; the lid is placed on the walls to close the pallet container and make it stackable. Walls can optionally be equipped with a locking system.

Available options

• Locking system on lid & pallet
• Sleeve with higher density
• Logo & barcode printing
• Label holder(s)
• Custom sleeve colour
• ESD & flame retardant material

Features & benefits

• Standardised sizes compatible with most racking systems and trucks
• Collapsible design reduces storage space when not in use
• Reusable design for long-term cost savings
• Lightweight and ergonomic; "walk-in" version available for easier loading/unloading
• Robust protection against damage, contamination and environmental factors
• Suitable for industries including automotive, pharmaceuticals, agriculture and retail
• Hygienic, easy to clean non-porous surfaces
• Sustainable: promotes reusability and recyclability
• Improved safety: smooth surfaces, rounded edges and stable stacking

Notes
The sleeve pack heights can be tailored to project-specific requirements. Standard pallet/gound dimensions are available but can be customized on special request.

Technical specifications

• Dimensions (mm): 1100x1000xH900 (External dimensions: 1100x1000xH900)
• Ground size (mm): 1100×1000
• Internal Dimensions (mm): 1035*935*700
• Width (mm): 1100
• Length (mm): 1000
• Height (mm): 900 (External height: 900)
• Load Capacity Static (Kg): 300
• Load Capacity Dynamic (Kg): 300
• Static Stacking: 1+3
• Dynamic Stacking: 1+2
• Wall thickness: 10mm
• Lid: Yes
• Folding window: Yes
• Walk-In: Optional
• Collar: No
• Condition: New
