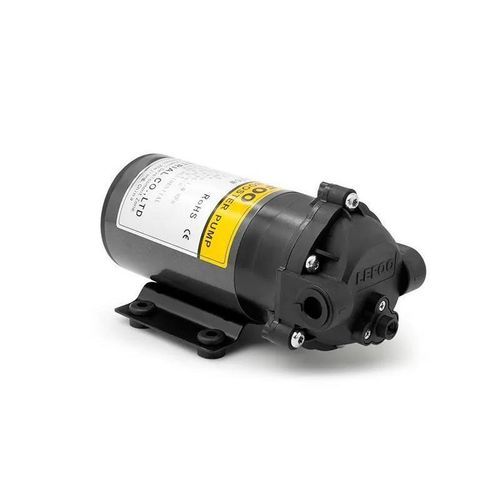

Electric pressure booster pump unit LFP0075W

electrically-poweredminiaturefor water systems

Product Overview

• Certifications: CE, RoHS, REACH.
• Food-grade compliance: all water-contact parts meet FDA, NSF or EU food-grade standards.
• High stability: large flow, compact footprint, stable output pressure and long service life.
• High-strength materials: reinforced plastics and metal components.
• High-performance motor: low noise, low vibration, strong torque for continuous operation.
• Quality control: 100% inspection across the production process.

Parameters
Model: LFP0075W
Voltage: 12V DC
Inlet water pressure: 0.2 MPa
Working pressure: 0.5 MPa
Working current: ≤ 1.8 A
Working flow rate: ≥ 750 ml/min
Open flow: ≥ 1800 ml/min
Bypass pressure: 0.8–1.0 MPa
Max current: ≤ 2.4 A
Interface: NPT 3/8" double O-ring
Certifications: CE, RoHS, REACH
Water-contact parts: FDA / NSF / EU food-grade compliant


Key advantages

• Increases feed pressure to improve RO membrane performance and recovery.
• Stable, continuous operation suitable for domestic and light industrial RO systems.
• Food-safe components facilitate integration in water treatment for potable or food-processing use.
• Compact design simplifies installation and retrofitting.

Technical specifications

• Model: LFP0075W
• Rated voltage: 12V DC
• Inlet pressure: 0.2 MPa
• Nominal working pressure: 0.5 MPa
• Working current: ≤ 1.8 A
• Max current: ≤ 2.4 A
• Working flow: ≥ 750 ml/min
• Open flow: ≥ 1800 ml/min
• Bypass pressure: 0.8–1.0 MPa
• Connection: NPT 3/8" (double O-ring)
• Materials: high-strength plastics and metal components; water-contact parts food-grade
• Certifications: CE, RoHS, REACH
