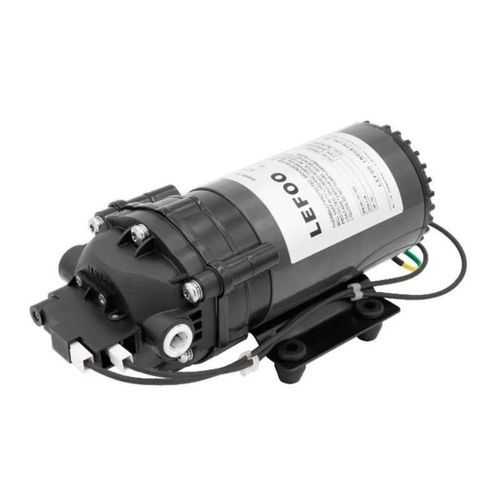

Diaphragm pump LFP6115T series

waterelectricself-priming

Overview
LEFOO LFP6115T 230VAC Demand Delivery Pump for on‑demand water supply. Technical performance data and temperature rise curves are provided for engineering selection and system integration.

Performance data and curves
Test conditions: inlet pressure 0 PSI, ambient and water temperature 25℃, voltage 230VAC 50/60Hz. Test data correspond to 3/8" pipe; results vary with different pipe sizes and ambient conditions.

Temperature rise curve
Measured at ambient 25℃, inlet 0 PSI, working pressure 70 PSI. Motor thermal protector disconnects when housing temperature reaches approximately 73℃ to allow cooling; motor resumes when temperature falls below the reconnection threshold. All curves are approximate and depend on operating conditions.

Performance parameters (Discharge Pressure / PSI — Flow Rate /GPM — Flow Rate /LPM — Current /A)
0 — 1.15 GPM — 4.35 LPM — 0.198 A
10 — 1.09 GPM — 4.11 LPM — 0.212 A
20 — 1.04 GPM — 3.93 LPM — 0.227 A
30 — 0.99 GPM — 3.73 LPM — 0.253 A
40 — 0.94 GPM — 3.57 LPM — 0.277 A
50 — 0.91 GPM — 3.43 LPM — 0.301 A
60 — 0.88 GPM — 3.33 LPM — 0.324 A
70 — 0.86 GPM — 3.25 LPM — 0.342 A

Shut-off pressure for selection and related parameters
Common selection reference: Rated voltage 230 V AC; test inlet pressure 0 PSI; typical working flow 1.15 GPM; typical working current ≤ 0.25 A; suction ≥ 2 m; fluid connection 3/8" side female quick connector (NPT 3/8 / threaded).

Model variants and shut-off / maximum current:
LFP6115T-30070 — Shut-off 70 PSI — Maximum current ≤ 0.39 A
LFP6115T-30060 — Shut-off 60 PSI — Maximum current ≤ 0.37 A
LFP6115T-30050 — Shut-off 50 PSI — Maximum current ≤ 0.35 A
LFP6115T-30040 — Shut-off 40 PSI — Maximum current ≤ 0.33 A
LFP6115T-30030 — Shut-off 30 PSI — Maximum current ≤ 0.30 A

Dimension
Dimension drawing available for the LFP6115T model (refer to product image/drawing for exact dimensions).

Documents
Technical PDF: LEFOO LFP6115T Series On Demand Delivery Pump (product datasheet).

Characteristics / Technical specifications

• Model: LFP6115T
• Commercial denomination: 230VAC Demand Delivery Pump
• Brand: LEFOO
• Rated voltage: 230 V AC (50/60 Hz)
• Test inlet pressure for performance data: 0 PSI
• Test ambient & water temperature: 25 ℃
• Nominal flow (at 0 PSI): 1.15 GPM (4.35 LPM)
• Flow range (0–70 PSI): 1.15 GPM down to 0.86 GPM (4.35 LPM down to 3.25 LPM)
• Operating current range: ~0.198 A to 0.342 A depending on pressure
• Working current (selection reference): ≤ 0.25 A
• Maximum current (by variant): up to ≤ 0.39 A
• Suction capability: ≥ 2 m
• Connection: 3/8" side female quick connector (NPT 3/8 / threaded)
• Test pipe size used for data: 3/8"
• Thermal protection: motor thermal protector disconnects at approx. 73℃ housing temperature
• Available shut-off variants: LFP6115T-30030 / -30040 / -30050 / -30060 / -30070
