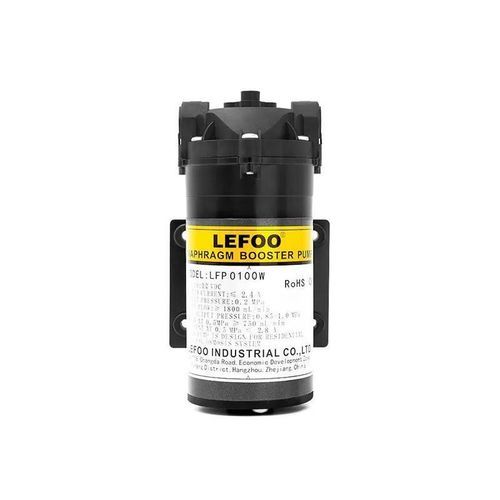

Electric pressure booster pump unit LFP0100W

electrically-poweredminiaturefor water systems

Product overview

• Application: booster pump for reverse osmosis (RO) systems and water dispensers requiring stable outlet pressure at low to medium flow rates.
• Compliance: CE, RoHS, REACH; water-contact parts meet FDA/NSF/EU food-grade requirements.
• Design highlights: compact footprint, low-noise motor, low vibration, and materials selected for long service life in potable-water applications.

Key applications

• Domestic and commercial RO systems (pre- and post-RO booster).
• Water purifiers and dispensers with 12V DC power supplies.
• Small-scale beverage or laboratory water supply where food-grade components are required.

Parameters
Model: LFP0100W
Voltage: 12V DC
Inlet water pressure (recommended): 0.2 MPa
Working pressure: 0.5 MPa
Working current: ≤ 2.4 A
Maximum current: ≤ 2.8 A
Working flow rate: ≥ 980 ml/min
Open flow (no load): ≥ 2000 ml/min
Bypass pressure range: 0.8–1.0 MPa
Interface method: 2-pin U-shaped plug-in / 2-point interpolation


Dimensions & installation
Compact housing suitable for inline installation. Technical drawings and dimensioned images are available for mounting and plumbing integration (including mounting points and clearances).


Documents
Product datasheet (PDF): LEFOO 12V 100GPD LFP0100W. Installation and wiring diagrams available on request.


Technical specifications

• Model: LFP0100W
• Rated voltage: 12V DC
• Operating current (typical): ≤ 2.4 A; Peak current ≤ 2.8 A
• Operating flow: ≥ 980 ml/min; Open flow ≥ 2000 ml/min
• Recommended inlet pressure: 0.2 MPa; Rated working pressure: 0.5 MPa
• Bypass pressure: 0.8–1.0 MPa
• Interface: 2-pin U-shaped plug-in connector
• Materials: high-strength plastic and metal components; water-contact parts conform to FDA/NSF/EU food-grade
• Certifications: CE, RoHS, REACH
• Quality control: 100% inspection during production
