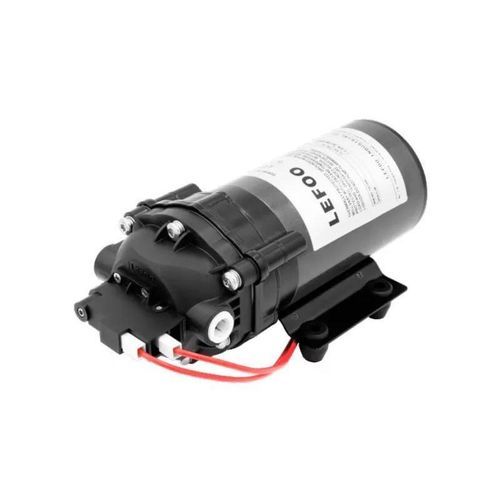

Diaphragm pump LFP0075T series

waterDCself-priming

Performance data and curves
Data were tested at inlet pressure of 0 PSI, ambient temperature and water temperature of 25℃, and voltage of 12V DC. Test results refer to a 3/8" pipe; using other pipe sizes will change the results.

Performance parameters
Discharge Pressure (PSI) | Flow Rate (GPM) | Flow Rate (LPM) | Current (A)
0 | 0.75 | 2.84 | 1.20
10 | 0.71 | 2.70 | 1.49
20 | 0.68 | 2.56 | 1.79
30 | 0.64 | 2.41 | 2.07
40 | 0.60 | 2.27 | 2.36
50 | 0.56 | 2.13 | 2.65
60 | 0.51 | 1.92 | 2.93
70 | 0.48 | 1.81 | 3.22

Temperature rise curve
The temperature rise curve was measured at ambient 25℃, inlet pressure 0 PSI and working pressure 70 PSI. To protect the motor, the housing thermal protector disconnects when temperature reaches approximately 73℃; motor operation resumes after cooling. All performance and temperature data are approximate and will vary with installation, fluid type and ambient conditions.

Shut-off pressure for selection
Selection | Rated Voltage | Inlet Water Pressure | Working Flow Rate | Working Current | Suction | Shut-off Pressure | Maximum current | Connection
LFP0075T-30070 | 12V DC | 0 PSI | 0.75 GPM | ≤2.0 A | ≥2 M | 70 PSI | ≤3.8 A | 3/8" side female quick connector (NPT 3/8" thread)
LFP0075T-30060 | 12V DC | 0 PSI | 0.75 GPM | ≤2.0 A | ≥2 M | 60 PSI | ≤3.6 A | 3/8" side female quick connector (NPT 3/8" thread)
LFP0075T-30050 | 12V DC | 0 PSI | 0.75 GPM | ≤2.0 A | ≥2 M | 50 PSI | ≤3.3 A | 3/8" side female quick connector (NPT 3/8" thread)
LFP0075T-30040 | 12V DC | 0 PSI | 0.75 GPM | ≤2.0 A | ≥2 M | 40 PSI | ≤3.0 A | 3/8" side female quick connector (NPT 3/8" thread)
LFP0075T-30030 | 12V DC | 0 PSI | 0.75 GPM | ≤2.0 A | ≥2 M | 30 PSI | ≤2.7 A | 3/8" side female quick connector (NPT 3/8" thread)

Notes
All performance and temperature data are provided for reference; actual performance depends on installation conditions, pipe size, fluid properties and ambient environment.

Specifications / technical data

• Model: LFP0075T
• Brand: LEFOO
• Type: Demand delivery pump, 12V DC
• Rated voltage: 12V DC
• Nominal flow rate: 0.75 GPM (≈2.84 LPM) at 0 PSI
• Tested pressure range: 0–70 PSI
• Typical working current: ≤2.0 A (varies with pressure)
• Maximum current (variant-dependent): up to ≤3.8 A
• Suction capability: ≥2 M
• Available shut-off selections: 30 / 40 / 50 / 60 / 70 PSI
• Connection: 3/8" side female quick connector (NPT 3/8" thread)
• Thermal protection: housing thermal protector disconnects at ≈73℃
• Test conditions: inlet 0 PSI, ambient & water 25℃, 12V DC, 3/8" pipe
• Documentation: series PDF datasheet and dimension drawings available
