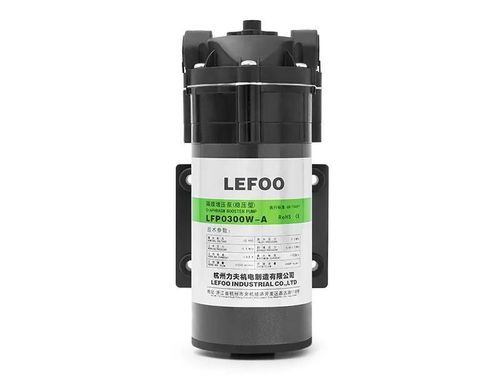

Electric pressure booster pump unit LFP0300W-A

electrically-poweredfor water systemsfor water

Overview
Ensure stable water pressure in reverse-osmosis (RO) systems with the LFP0300W-A RO booster pump. Engineered for industrial and commercial water-treatment installations, it delivers consistent flow and compact mounting options.

Key features

• Certifications: CE, RoHS, REACH.
• Food-contact compliance: wetted parts meet FDA, NSF or EU food-grade requirements.
• High stability: large flow in a compact footprint with stable delivery and long service life.
• Durable construction: high-strength plastic and metal components.
• High-performance motor: low noise, low vibration, reliable power.
• Quality assurance: 100% quality control across production.

Parameters
Model: LFP0300W-A
Voltage: 12VDC
Inlet water pressure: 0.2 MPa
Working pressure: 0.5 MPa
Working current: ≤ 4.2 A
Working flow rate: ≥ 2200 ml/min
Open flow: ≥ 3000 ml/min
Bypass pressure: 0.8–1.0 MPa
Maximum current: ≤ 5.6 A
Interface method: 2-point U-shaped plug-in / 2-point interpolation

Dimensions and documentation
Dimension drawings and product dimension images are provided for installation reference. Datasheet (PDF): LEFOO 12V 300GPD LFP0300W-A available.

Technical specifications

• Model: LFP0300W-A
• Supply voltage: 12V DC
• Recommended inlet pressure: 0.2 MPa
• Rated working pressure: 0.5 MPa (bypass 0.8–1.0 MPa)
• Typical working current: ≤ 4.2 A; maximum ≤ 5.6 A
• Rated flow: ≥ 2200 ml/min; open flow ≥ 3000 ml/min
• Materials: high-strength plastics and metals; food-contact parts compliant with FDA/NSF/EU
• Motor: low-noise, low-vibration, high-performance
• Certifications: CE, RoHS, REACH
