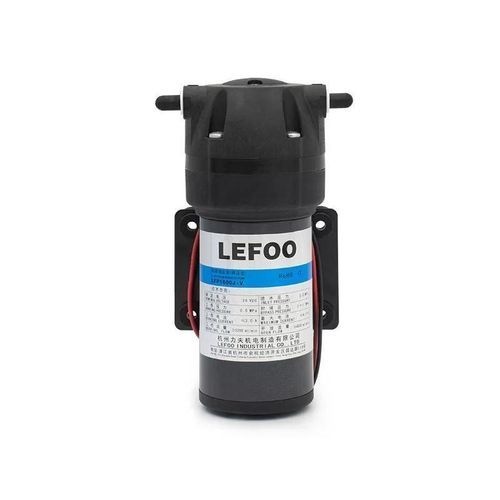

Electric pressure booster pump unit LFP600GPD

electrically-poweredfor water systemsfor water

Product overview
The LFP600GPD is a 24V DC RO booster pump for reverse-osmosis systems, intended to raise feed pressure and maintain consistent flow rates across RO membranes.

Parameters (series table excerpt)

• Model family examples: LFP1500W, LFP1600J-V, LFP1600J, LFP1600JD, LFP2500W, LFP2600J-V (series table on product page)
• Voltage: 24V DC (24V variants) — some series models also available at 36V DC
• Inlet water pressure: 0.2 MPa (typical for 24V models)
• Working pressure: typically 0.5 MPa (variants up to 0.7 MPa)
• Working current: example values ≤1.6A to ≤3.7A depending on model
• Working flow rate: example values ≥2800–≥3250 ml/min depending on model
• Open flow (no backpressure): example values ≥4000–≥5000 ml/min
• Bypass pressure: typically 0.85–1.05 MPa (some variants 0.9–1.1 MPa)
• Maximum (peak) current: example values up to ≤4.2A for some models

Dimensions
Dimension drawings and technical views are available in the product gallery (see dimension graphics and schematic views on the product page).

Related applications

• Reverse osmosis / water treatment systems
• HVAC
• Cleanrooms
• Refrigeration
• Building automation
• Water & wastewater
• Food & beverage and laboratory equipment (selected variants)

Features / Technical specifications

• Model: LFP600GPD
• Commercial name: 24V DC RO Booster Pump
• Brand: LEFOO
• Nominal voltage: 24V DC
• Recommended inlet pressure: 0.2 MPa (series indication)
• Working pressure range: approx. 0.5 MPa (variants up to 0.7 MPa)
• Typical flow examples: working ≥2800–3250 ml/min; open flow ≥4000–5000 ml/min (depending on variant)
• Typical operating current examples: ≤1.6A to ≤3.7A (variant dependent)
• Bypass pressure range and max current: see series table for model-specific values
• Available assets: product images and dimension drawings on the product page
