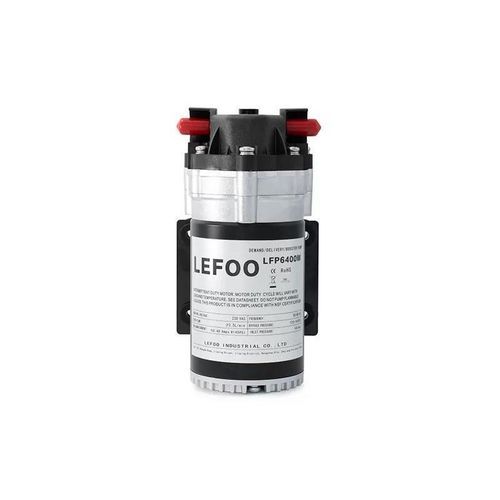

Electric pressure booster pump unit LFP200-400GPD

electrically-poweredfor water systemsfor water

Overview
The LFP200-400GPD/230V AC RO Booster Pump increases feed pressure for reverse osmosis (RO) systems operating on 230V AC. Available in multiple performance variants to match required flow and current profiles. Intended for integration in residential, commercial and light-industrial RO applications where stable pressure and consistent flow are required.

Models

• LFP6200W
• LFP6300W-A
• LFP6300W
• LFP6400W

Parameters (table)
Model | LFP6200W | LFP6300W-A | LFP6300W | LFP6400W
Voltage | 230V AC | 230V AC | 230V AC | 230V AC
Inlet Water Pressure | 0.2MPa | 0.2MPa | 0.2MPa | 0.2MPa
Working Pressure | 0.5MPa | 0.5MPa | 0.5MPa | 0.5MPa
Working Current | ≤0.23A | ≤0.26A | ≤0.28A | ≤0.30A
Working Flow Rate | ≥1900 ml/min | ≥2200 ml/min | ≥2700 ml/min | ≥2950 ml/min
Open Flow | ≥2500 ml/min | ≥3000 ml/min | ≥3500 ml/min | ≥4000 ml/min
Bypass Pressure | 0.85–1.0MPa | 0.85–1.0MPa | 0.85–1.0MPa | 0.85–1.0MPa
Maximum Current | ≤0.35A | ≤0.38A | ≤0.40A | ≤0.45A

Dimensions
Dimension drawings and installation diagrams are provided for the LFP200-400GPD/230V series (see product images for dimension sheets).

Related Application

• HVAC
• Cleanroom
• Refrigeration
• Building Automation
• Water & Wastewater
• Food & Beverage

Characteristics / Technical specifications

• Series / Model designation: LFP200-400GPD/230V (variants listed above)
• Rated voltage: 230V AC
• Recommended inlet water pressure: 0.2 MPa
• Nominal working pressure: 0.5 MPa
• Bypass pressure range: 0.85–1.0 MPa
• Working current (by model): ≤0.23A / ≤0.26A / ≤0.28A / ≤0.30A
• Maximum current (by model): ≤0.35A / ≤0.38A / ≤0.40A / ≤0.45A
• Working flow rate (by model): ≥1900 / ≥2200 / ≥2700 / ≥2950 ml/min
• Open flow (by model): ≥2500 / ≥3000 / ≥3500 / ≥4000 ml/min
• Use: booster pump for reverse osmosis (RO) feed pressure stabilization
