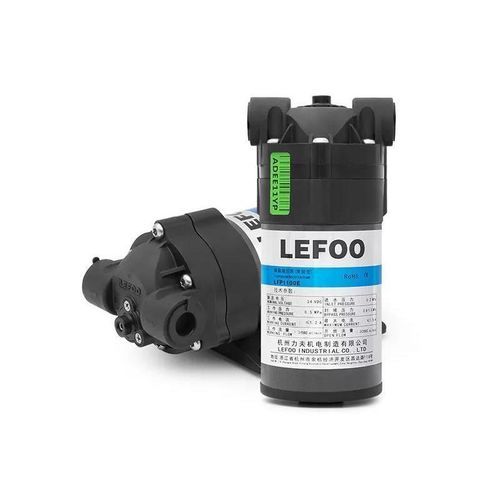

Electric pressure booster pump unit LFP100GPD

electrically-poweredfor water systemsfor water

Product overview
The LFP100GPD is a 24V DC RO booster pump from LEFOO, engineered to increase feed pressure and ensure steady flow in reverse osmosis water purification systems.

Applications

• Reverse osmosis water treatment systems
• Domestic and commercial water booster lines
• HVAC and refrigeration support circuits
• Laboratory and medical water supplies
• Industrial process water and machine cooling

Variants and key parameters

• Self‑priming variants (examples): LFP1100JS / LFP1100S — Voltage: 24V DC; Working pressure: 0.5 MPa; Inlet pressure: 0 MPa; Working flow ≥1050 mL/min; Open flow ≥1400 mL/min; Working current ≤1.6 A; Max current ≤2.1 A; Self‑priming height ≥3.0 m.
• Normal variants (examples): LFP1100E / LFP1100J / LFP1100W / LFP1100W‑P — Voltage: 24V DC; Inlet pressure: 0.2 MPa; Working pressure: 0.5 MPa; Working flow ≥980 mL/min; Open flow 1800–2200 mL/min depending on model; Working current typically ≤1.2–1.4 A; Max current up to ≤1.8 A (model dependent).

Technical specifications

• Brand: LEFOO
• Model: LFP100GPD (family with LFP1100-series variants)
• Operating voltage: 24V DC
• Typical working pressure: 0.5 MPa
• Inlet water pressure: 0–0.2 MPa depending on variant
• Working flow rates: ≥980 mL/min to ≥1050 mL/min (varies by model)
• Open flow: ≥1400 mL/min up to ≥2200 mL/min (varies by model)
• Bypass pressure: typically 0.8–1.0 MPa (some variants 0.85–1.0 MPa)
• Operating current: typically ≤1.2 A to ≤1.6 A; maximum current model‑dependent
• Self‑priming height: ≥3.0 m for self‑priming variants

Dimensions & documentation
Product images and dimensional drawings are available on the product page; consult these for mounting, hydraulic connections and installation clearances.
