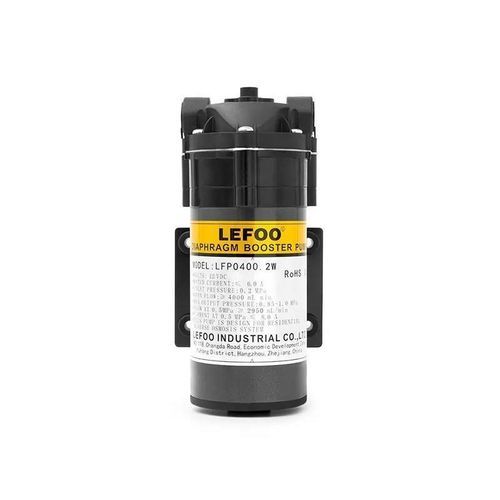

Electric pressure booster pump unit LFP0400W

electrically-poweredfor water systemsfor water

Product overview

• Certifications: CE, ROHS, REACH.
• Food-contact compliance: all wetted parts meet FDA, NSF or EU food-grade standards.
• High stability: large flow, compact size, stable pressure, long service life.
• High-strength construction: reinforced plastic and metal components.
• High-performance motor: low noise, low vibration and robust power.
• 100% quality control: final inspection across the production process.

Parameters
Model: LFP0400W
Voltage: 12VDC
Inlet water pressure: 0.2 MPa
Working pressure: 0.5 MPa
Working current: ≤ 4.5 A
Working flow rate: ≥ 2950 mL/min
Open flow: ≥ 4000 mL/min
Bypass pressure: 0.8–1.0 MPa
Maximum current: ≤ 7.0 A

Documents
Technical datasheet (PDF) available for this model.

Applications

• Designed to boost pressure in reverse osmosis (RO) systems.
• Suitable for industrial, commercial and residential RO installations requiring 12V DC booster pumps.

Features / Technical specifications

• Model: LFP0400W
• Voltage: 12VDC
• Inlet water pressure: 0.2 MPa
• Working pressure: 0.5 MPa
• Working current: ≤ 4.5 A
• Maximum current: ≤ 7.0 A
• Working flow rate: ≥ 2950 mL/min
• Open flow: ≥ 4000 mL/min
• Bypass pressure range: 0.8–1.0 MPa
• Certifications: CE, ROHS, REACH
• Wetted parts: compliant with FDA/NSF/EU food-grade requirements
• Construction: high-strength plastics and metal components
• Motor: low-noise, low-vibration, high-output design
• Quality: 100% production inspection
