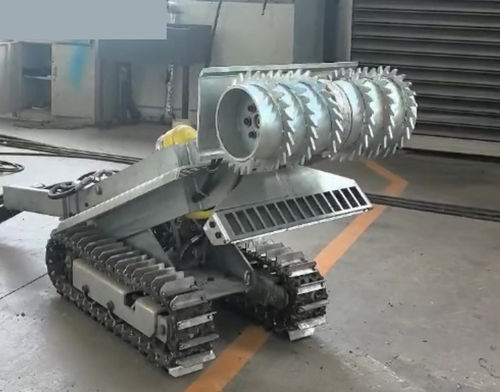

Hydraulic pipeline cleaning robot YG series

electric

Overview
The YG Machinery sewer cleaning robot is an automated solution for sludge removal and cleaning in sewers, wastewater systems, sewage tanks and other confined or hazardous environments. It integrates high-pressure water jets, a robotic arm and an onboard camera system to enable precise remote operation while minimizing manual intervention and occupational risk.

Working Principle
The system combines high-pressure water jets with a robotic arm and a suction/dredging mechanism to dislodge and extract sludge, sediments and debris from pipes and tanks. The integrated camera provides live visual feedback for navigation and targeted cleaning.

Key Features

• Corrosion-resistant, pressure-rated construction
• Modular design for straightforward maintenance
• Remote-control operation for enhanced safety
• Configurable for varying pipe diameters and depths

Applications

• Municipal drainage and sewer networks
• Industrial sewage pipelines
• Chemical tanks and wastewater basins
• River, pond and port mini-dredging

Performance & Benefits
Compared to manual cleaning methods, the robot reduces labor exposure to hazards, decreases operating costs by approximately 35–50% and increases cleaning speed. Field cases report productivity improvements around 40% after switching from manual to automated cleaning with the YG sewer cleaning robot.

Sewer Cleaning Robot Parameters
Model: YG-500 | YG-600 | YG-700 | YG-800 | YG-900 | YG-1200
Robot Size: 1500*500*650 mm | 1500*600*650 mm | 1600*700*650 mm | 1600*850*700 mm | 1650*960*750 mm | 1900*1200*750 mm
Dredging Width: 500 mm | 600 mm | 700 mm | 800 mm | 900 mm | 1200 mm
Track Travel Speed: 3–15 m/s (model dependent)
Water Pump Flow Rate: 100 cubic meters | 100 cubic meters | 160 cubic meters | 160 cubic meters | 200 cubic meters | 200 cubic meters
Water Pump Head: 0–30 m | 0–30 m | 0–25 m | 0–25 m | 0–25 m | 0–25 m
Hydraulic Station Dimensions: 2200*1200*1700 mm (typ.) | last model 2120*1240*1200 mm
Main Motor Power: 18 kW | 18 kW | 22 kW | 22 kW | 22 kW | 45 kW

Additional Notes
The unit can also operate as a sewage tank cleaning robot and is suitable for mini-dredging and industrial pond dredging tasks. Customization options are available for pipe size adaptation, cleaning pressure and enhanced corrosion protection.

Technical specifications

• Models available: YG-500, YG-600, YG-700, YG-800, YG-900, YG-1200
• Robot dimensions: from 1500*500*650 mm up to 1900*1200*750 mm
• Dredging width range: 500 mm to 1200 mm
• Track travel speed: 3–15 m/s
• Water pump flow rate: 100–200 cubic meters (model dependent)
• Water pump head: up to 0–30 m depending on model
• Main motor power: 18 kW, 22 kW or 45 kW depending on model
• Hydraulic station dimensions: typically 2200*1200*1700 mm (varies by model)
