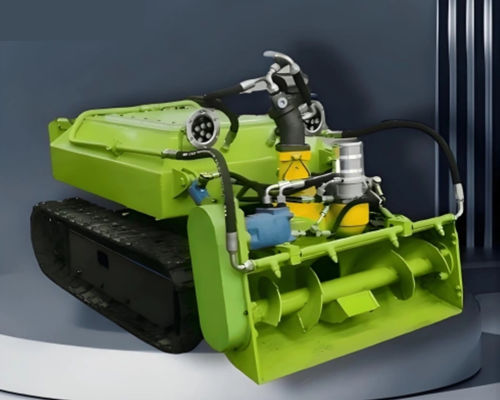

Basin cleaning robot YG series

for water tanksduct and pipewet cleaning

Overview
A sewage tank cleaning robot is an unmanned cleaning solution designed to increase sludge removal efficiency and reduce operational costs. Compared with manual cleaning, the robot can improve efficiency by up to three times and reduce operating expenses by around 40%. It is built for modern wastewater management and industrial maintenance with features for safe, reliable operation in harsh environments.

Key Features

• HD camera navigation and remote visual control for precise operation.
• Strong sludge suction and integrated high-pressure wash systems.
• Remote control operation with typical range of 50–150 m.
• Waterproof design with IP68 rating for underwater use.
• Corrosion-resistant materials and optional explosion‑proof configurations for hazardous environments.

Technical Table (models comparison)
Model | YG-500 | YG-600 | YG-700 | YG-800 | YG-900 | YG-1200
Robot Size | 1500*500*650mm | 1500*600*650mm | 1600*700*650mm | 1600*850*700mm | 1650*960*750mm | 1900*1200*750mm
Dredging Width | 500mm | 600mm | 700mm | 800mm | 900mm | 1200mm
Track Travel Speed | 3-15m/s | 3-15m/s | 3-15m/s | 3-15m/s | 3-15m/s | 3-15m/s
Water Pump Flow Rate | 100 cubic meters | 100 cubic meters | 160 cubic meters | 160 cubic meters | 200 cubic meters | 200 cubic meters
Water Pump Head | 0-30m | 0-30m | 0-25m | 0-25m | 0-25m | 0-25m
Hydraulic Station Dimensions | 2200*1200*1700 | 2200*1200*1700 | 2200*1200*1700 | 2200*1200*1700 | 2200*1200*1700 | 2120*1240*1200
Main Motor Power | 18kw | 18kw | 22kw | 22kw | 22kw | 45kw

Additional Performance & Components

• Remote Control Operation: Standard control up to 50–150 m.
• Working Depth: Up to 30 m or more depending on configuration.
• High‑Pressure Water Jets: 100–280 MPa output available for stubborn deposits.
• High‑Capacity Suction Pumps: Configured to handle a variety of sludge types.
• IP68 Waterproof Rating: Ensures safe underwater operation.

Smart Operation & Safety
The units include HD cameras and remote consoles for real‑time visual control, enabling operators to monitor cleaning progress and operate the machine safely at distance. Core components use corrosion‑resistant materials; explosion‑proof options are available for hazardous environments.

Applications

• Municipal wastewater plants — sedimentation tank dredging and sludge removal.
• Industrial wastewater treatment — sludge pits and wastewater tanks with minimal human exposure.
• Petroleum and fuel storage tanks — confined-space cleaning to improve safety.
• Circulation water systems and cooling towers — shorten downtime and improve maintenance cycles.
• Urban sewers and culverts — access narrow spaces where conventional equipment cannot reach.

Customer Outcomes (examples)
Real deployments have shown dramatic time savings (e.g., reducing cleaning from weeks to days) and improved safety by enabling unmanned operations in hazardous or confined environments.

Technical specifications

• Models: YG-500, YG-600, YG-700, YG-800, YG-900, YG-1200
• Robot dimensions range: from ~1500*500*650 mm up to 1900*1200*750 mm depending on model
• Dredging width: 500 mm to 1200 mm (model-dependent)
• Track travel speed: 3–15 m/s
• Water pump flow rate: 100–200 cubic meters (model-dependent)
• Water pump head: up to 30 m (model-dependent)
• Main motor power: 18 kW to 45 kW (model-dependent)
• Working depth capability: up to ~30 m or higher depending on configuration
• High-pressure jet options: 100–280 MPa
• Suction system: high-capacity, designed for diverse sludge types
• Protection: IP68 waterproof rating; corrosion-resistant materials; optional explosion‑proof configurations
• Control: Remote visual operation with HD camera feedback; standard remote range 50–150 m
