Oil Tank cleaning robot YG series

for water tanksfor basinduct and pipe

Product Overview

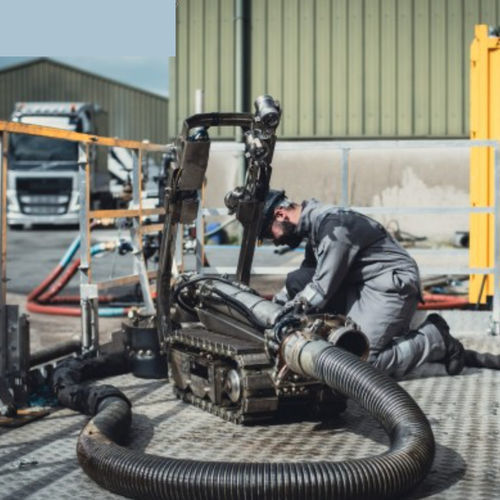

The Oil Tank Cleaning Robot from YG Machinery is a remote-controlled, explosion-proof dredging robot designed to remove heavy oil sludge from storage tanks and other industrial vessels. It eliminates confined-space manual entry, improves safety, reduces downtime, and enables efficient recovery of hydrocarbons from sludge.

Core Product Features and Functionality

• Explosion-Proof Certification: Certified explosion-proof motors and anti-static, all-copper construction for safe operation in flammable and volatile environments.
• High-Solids Sludge Pump: Pump technology designed for high-viscosity, high-concentration oil sludge to ensure continuous, efficient removal.
• Remote Operation Platform: Fully remote-controlled operation allowing operators to perform tasks from a safe zone without entering the tank.
• Modular Design: Portable and easy to disassemble for transport and rapid deployment.

Unique Advantages

• Zero Confined Space Entry: Eliminates human entry into hazardous tank interiors.
• Maximized Uptime: Faster cleaning process reduces tank out-of-service time.
• Efficient Sludge Recovery: Minimizes water content in recovered sludge to increase the value of reclaimed hydrocarbons.
• Precise Positioning and Cleaning: Integrated HD cameras and sensors for targeted removal of heavy sludge deposits.

Applications

• Petroleum Refining: Cleaning waxy materials and sludge from crude oil, gasoline, and diesel storage tanks.
• Chemical Storage & Transport: Removing high-viscosity sediments from large chemical and solvent storage vessels.
• Environmental & Energy: Cleaning oil residue pits at power plants and biofuel storage facilities.
• Marine Ports: Maintenance and sludge removal from ballast tanks and tanker bottoms.

Dredging Robot Parameters

• Model: YG-500 | YG-600 | YG-700 | YG-800 | YG-900 | YG-1200
• Robot size: 1500×500×650 mm (YG-500); 1500×600×650 mm (YG-600); 1600×700×650 mm (YG-700); 1600×850×700 mm (YG-800); 1650×960×750 mm (YG-900); 1900×1200×750 mm (YG-1200)
• Dredging width: 500 mm | 600 mm | 700 mm | 800 mm | 900 mm | 1200 mm
• Track travel speed: 3–15 m/s (all models)
• Water pump flow rate: 100 m³ | 100 m³ | 160 m³ | 160 m³ | 200 m³ | 200 m³
• Water pump head: 0–30 m (YG-500/600); 0–25 m (YG-700/800/900/1200)
• Hydraulic station dimensions: 2200×1200×1700 mm (most models); 2120×1240×1200 mm (YG-1200)
• Main motor power: 18 kW (YG-500/600); 22 kW (YG-700/800/900); 45 kW (YG-1200)

Technical specifications

• Product name: Oil Tank Cleaning Robot
• Manufacturer / Brand: YG Machinery
• Available models: YG-500, YG-600, YG-700, YG-800, YG-900, YG-1200
• Construction: Explosion-proof motors, all-copper body, anti-static design
• Pump capability: High-solids / high-viscosity sludge pumping, designed to handle caked or hardened sludge with cutter/agitation units
• Operation: Remote-controlled dredging robot with HD cameras and sensors for precise positioning
• Design: Modular and portable for easy transport and rapid deployment
