Stretch blow molding machine YG series

for PETfor plastic bottlesfor bottles

Product overview
The YG Machinery Automatic PET Bottle Blowing Machine is a high-automation stretch blow molding system that transforms PET preforms into finished bottles for beverage, edible oil, daily chemical and pharmaceutical packaging. It is offered in multiple configurations from hand-inserted semi-automatic units to fully automatic multi-cavity lines, designed to deliver high output, stable quality and improved energy efficiency.

Key selling points

• Full servo system: full servo drive for high precision, faster cycle times and energy savings (25%–30% vs older hydraulic systems).
• Intelligent control: advanced PLC and touchscreen with real-time OEE dashboard for monitoring and diagnostics.
• Fast mold changeover: quick-lock mold change system to reduce downtime and increase flexibility.
• Uniform preform heating: infrared conveyorized heater with self-rotation system to ensure even heating and consistent wall thickness.

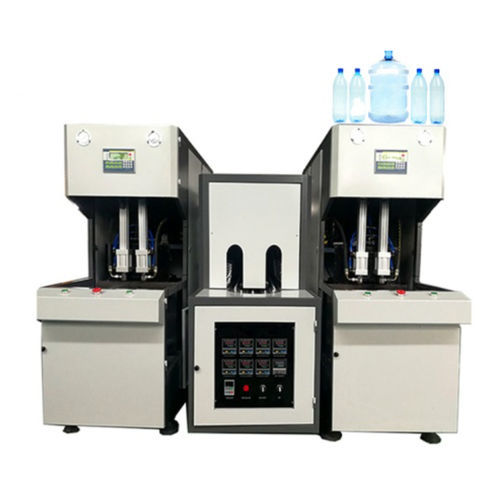

Hand-inserted (semi-automatic) model description
The hand-inserted preform machine requires manual placement of the mold/preform into the blow molding system while other steps are automated; available in one-chamber and two-chamber variants.

Table: Semi-automatic / small models (excerpt)
Model | YG-1H-3L | YG-1H-5L | YG-2H-1.25L
Production Capacity | 1 cavity | 1 cavity | 2 cavity
Theoretical output (PCS/H) | 600-800 | 500-600 | 1500-2000
Pressure for blowing (KG) | 30 | 30 | 30
Flow rate for working (m³) | 0.8 | 1 | 0.8
Flow rate for blowing (m³) | 0.8 | 1 | 0.8
Neck diameter (MM) | 12-80 | 50-110 | 12-30
Max diameter & height (MM) | 120*200 | 150*280 | 80*300
Machine size (M) | 2.6*1.6*1.8 | 2.7*1.6*1.8 | 2.6*1.5*1.8
Machine weight (KG) | 1800 | 1800 | 1800

Table: Fully automatic multi-cavity models (excerpt)
Model | YG-2A-2F | YG-2A-2P | YG-4A-4F | YG-4A-4P | YG-6A-6F | YG-6A-6P
Theoretical output (PCS/H) | 2800 | 1800 | 5000 | 3000 | 6000-7500 | 4500-5500
Volume (L) | 0.6 | 1.25 | 0.6 | 1.25 | 0.6 | 0.6
Max height (MM) | 260 | 320 | 280 | 320 | 280 | 280
Max diameter (MM) | 60 | 80 | 60 | 86 | 60 | 60
Numbers of cavities | 2 | 2 | 4 | 4 | 6 | 6
Mould thickness (MM) | 180 | 180 | 180 | 180 | 180 | 180
Mould opening stroke (MM) | 120 | 120 | 100 | 120 | 120 | 120
Total power (KW) | 50 | 50 | 65 | 65 | 80 | 70
Heating power (KW) | 20 | 16 | 28 | 22 | 30 | 26
Operation pressure (Mpa) | 0.8*1.0 | 0.8*1.0 | 0.8*1.0 | 0.8*1.0 | 0.8*1.0 | 0.8*1.0
Blowing pressure | 30 | 30 | 30 | 30 | 30 | 30

Core technical advantages

• Stretch blow molding technology delivering good clarity, strength and lightweight bottles.
• Air recovery features and servo control reduce energy consumption and operating costs.
• Fully automatic lines can perform automatic loading, preheating, blowing and discharge.
• Designed for high OEE and robust long-term operation in high-demand production environments.

FAQ (selected)

• What factors should I consider when buying? Production capacity (bottles/hour), bottle-type flexibility and service/support capabilities matter most; machines range from compact 2-cavity to high-capacity multi-cavity units.
• How to maximize energy efficiency? Use full servo-drive systems and air recovery features to reduce energy waste compared with hydraulic systems.
• What causes inconsistent bottle quality? Incorrect preform heating or blowing pressure; precise adjustment via intelligent control and uniform preform heating prevents defects.

Applications

• Beverage industry: bottled water, soft drinks, juices.
• Edible oil and condiments: cooking oil, sauces.
• Daily chemical: shampoos, detergents, cosmetics.
• Pharmaceutical and nutraceutical liquid containers.

After-sales and service notes (product-related only)

• Pre-sale consultation typically covers factory layout and capacity planning for the selected model.
• After-sales support includes technical assistance, remote diagnostics and spare part supply plans to reduce downtime.

Caractéristiques / spécifications techniques

• Technology: Stretch Blow Molding.
• Drive: Full servo system for motion control.
• Control: PLC with touchscreen and OEE dashboard.
• Heating: Infrared conveyorized heater with rotation for even preform heating.
• Blowing pressure: typical rated 30 KG (30).
• Operation pressure: around 0.8–1.0 MPa depending on model.
• Model family examples: YG-1H-3L, YG-1H-5L, YG-2H-1.25L, YG-2A-2F, YG-4A-4F, YG-6A-6F, etc.
• Capacity ranges: from ~500–800 PCS/H (single cavity small models) up to several thousand PCS/H for multi-cavity fully automatic models (e.g., 2,800–7,500 PCS/H depending on variant).
• Power: total power range in tables from about 50 kW up to ~80 kW depending on configuration.
• Heating power: listed between ~16 kW and 30 kW depending on model.
