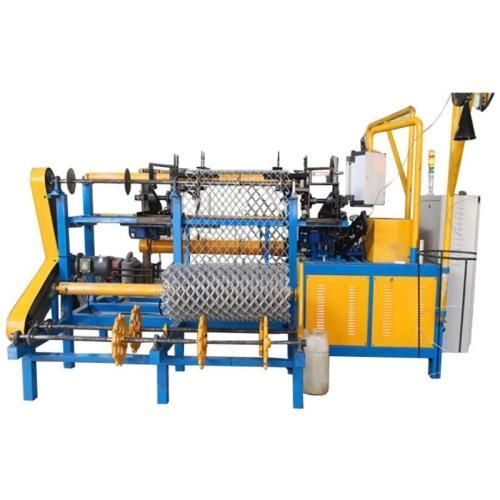

Wire mesh weaving machine YG-20-100

Product overview
A chain link fence machine automatically weaves metallic wires into interlocking diamond-mesh panels. Modern units use PLC touchscreen control and servo motor drives to manage spiral wire feeding, weaving, cutting and automatic edge curling or twisting. Machines accept galvanized and PVC-coated wires and can be configured for knuckled, twisted or knuckle-only mesh sides.

Main capabilities

• Automatic spiral feeding, weaving and cutting controlled by PLC touchscreen and servo drives.
• Compatible raw materials: hot-dipped galvanized, electro-galvanized, PVC-coated, aluminum-clad steel, stainless steel.
• Adjustable mesh width and length; quick-change molds to switch mesh sizes.
• Single-wire or dual-wire feed configurations available for different production rates and wire diameters.

Parameter summary

• Model: YG-20-100 | YG-25-80
• Wire diameter: 1.6–4 mm | 2–4 mm
• Mesh size: 20–100 mm | 25–100 mm
• Mesh width: 0.5–4 m
• Speed: 70–80 m²/h | 120–180 m²/h
• Mesh length: up to 30 m (adjustable)
• Mesh side: knuckled & twisted, knuckle, or twisted
• Machine size: 4.2×2.2×1.7 m | 6.7×1.43×1.8 m
• Weight: ~2000 kg | ~4200 kg
• Customization available for wire diameter, mesh hole size, mesh width and voltage.

Fully Automatic vs Semi-Automatic (feature comparison)

• Output rate: Fully automatic 70–150 m²/h — Semi-automatic 20–40 m²/h.
• Labor needed: Fully automatic 1 operator — Semi-automatic 2–3 workers.
• Compatible wires: Fully automatic: galvanized, PVC-coated, stainless steel — Semi-automatic: galvanized, mild steel.
• Material waste: Fully automatic: nearly zero — Semi-automatic: higher end-scrap rate.

How to choose for industrial applications

• Commercial & highway security: select machines handling 2.5–4.5 mm wire and mesh sizes 50–80 mm; heavy-duty single- or double-wire feed for continuous operation.
• Sports courts & public parks: prefer PVC-coated or aluminum-clad wire compatibility and larger mesh widths (up to 4–6 m).
• Mining & slope protection: choose heavy-gauge galvanized or stainless-steel compatibility to resist corrosion in harsh environments.

Operational & maintenance notes

• Operators set mesh width, weaving speed and length on the touchscreen; familiarization is quick with tutorial materials.
• Daily maintenance: remove metal shavings and check oil levels in key gears.
• Weekly maintenance: inspect drive belt tension and lubricate moving cutter joints.
• Recommendation: order extra spiral weave molds with the initial purchase; changeover typically under 30 minutes. Run a trial roll with local wire to fine-tune servo tension before full production.

Frequently asked questions

• What raw materials can a chain link fence machine handle? Hot-dipped galvanized, electro-galvanized, PVC-coated, aluminum-clad steel and stainless steel wire.
• How difficult is operation of a PLC-controlled machine? Operation is straightforward via touchscreen; operators usually reach competence within a few hours with provided tutorials.
• What maintenance is required? Daily cleaning of shavings and oil checks; weekly belt tension checks and lubrication of cutter joints.

Technical specifications

• Models: YG-20-100 and YG-25-80.
• Wire diameters: 1.6–4 mm (YG-20-100); 2–4 mm (YG-25-80).
• Mesh size range: 20–100 mm (YG-20-100); 25–100 mm (YG-25-80).
• Mesh width: 0.5–4 m (both models).
• Speed: 70–80 m²/h (YG-20-100); 120–180 m²/h (YG-25-80).
• Max mesh length: up to 30 m (adjustable).
• Mesh side options: knuckled & twisted, knuckle only, or twisted only.
• Compatible materials: galvanized, PVC-coated, aluminum-clad, stainless steel.
• Machine sizes: 4.2×2.2×1.7 m and 6.7×1.43×1.8 m.
• Machine weights: approx. 2000 kg and 4200 kg.
• Custom design available for wire diameter, mesh hole size, mesh width and voltage.
