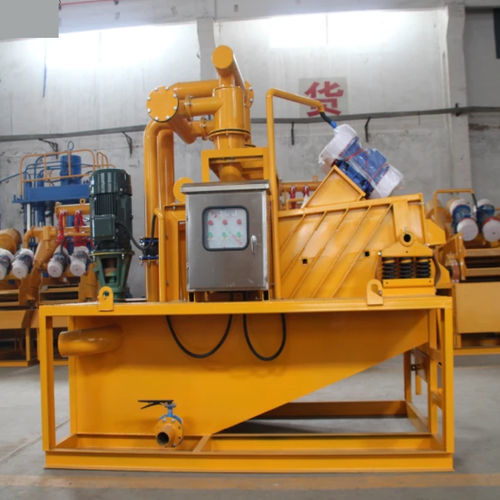

Sand separator YG series

cycloneconstructionfor water treatment

Product overview
Selecting the right slurry separator is critical for maintaining efficiency on foundation piling, rotary drilling, and dredging jobsites. A correctly specified separator reduces hydrocyclone blockages, screen blinding and excessive wear on slurry pumps.

Selection guidance

• If slurry contains high sand ratios with low clay stickiness → Choose a Single-Loop Slurry Separator (A-Type). Uses an external feed pump to route coarse solids through a double-deck vibrating screen and hydrocyclone for cost-effective solid-liquid separation.
• If material includes large gravel, high-viscosity mud, or fine sand → Upgrade to an Internal Circulation Slurry Separator (B- or C-Type). Integrated high-chrome alloy slurry pump continuously agitates and recirculates dense slurry to prevent settling and clogging.
• If pumping ultra-fine silt or clay that passes a 180 μm mesh → Pair the desanding plant with a slurry filter press. A hydrocyclone separates sand down to d50 = 180 μm; a secondary filter press is required to remove finer clay particulates for closed-loop water recycling and near-zero discharge.

Capacity & application guidance

• For feed pump 7.5–15 kW → 100–150 m³/h units (compact models for small piling rigs and utility trenching).
• For flow rates 200–250 m³/h → 200-B or 250-C mid-sized units with internal pumps to keep sand content below 2% for deep foundation drilling.
• For very large volumes (300–400 m³/h+) → 300-C or 400-C high-capacity separation plants with multi-hydrocyclone groups and higher vibrating motor capacity for large-scale bridge piling and microtunneling.

Working environment considerations

• Restricted urban sites / inner-city bridge piers → select compact vertical-pump desanding units with small footprint (example compact formats under ~2.5m × 1.5m).
• Remote regions with abrasive geology (granite, quartz) → specify polyurethane hydrocyclone liners (thicker liners) and high-chrome pump impellers for increased wear resistance.
• Environmentally sensitive sites → use fully enclosed, zero-leakage slurry recycling systems combined with closed-loop extraction equipment to avoid disturbance and spillage.

Installation & mobility

• Frequent moves between short-term piling sites → choose skid-mounted units under ~2000 kg with lifting lugs for easy transport by flatbed/forklift.
• Fixed multi-year installations → mount desanding plant on an elevated steel frame or modular container mud tank to enable gravity-fed slurry discharge and easier maintenance.

Power supply guidance

• On-grid (stable 380V/50Hz three-phase) → use standard electric-driven models (total power options shown in technical parameters).
• Off-grid / remote sites → pair the system with a diesel generator sized to at least 1.5× total motor startup load.

Slurry Separator Parameters
Model | YG-100A | YG-160B | YG-200B | YG-250A | YG-250B | YG-250C | YG-300C
Maximum Slurry Handling Capacity | 100m³/h | 160m³/h | 200m³/h | 250m³/h | 250m³/h | 250m³/h | 300m³/h
Total Power | 0.5 kW | 17.2 kW | 24.2 kW | 3 kW | 25 kW | 48 kW | 59.4 kW
Vibratory Motor | 0.25 kW×2 | 1.1 kW×2 | 1.1 kW×2 | 1.5 kW×2 | 1.5 kW×2 | 1.5 kW×2 | 2.2 kW×2
Total Machine Weight | 550 kg | 1950 kg | 2050 kg | 1350 kg | 2300 kg | 4000 kg | 5500 kg
Maximum Moisture Content in Discharged Material | 30% | 30% | 30% | 30% | 30% | 30% | 30%
Sand Content of Slurry After Purification | <2% | <2% | <2% | <2% | <2% | <2% | <2%
Separation Particle Size d50 (μm) | 180 | 180 | 180 | 180 | 180 | 180 | 180
Overall Dimensions (L×W×H) | 2.5×0.83×2.1 m | 2.7×1.9×2.6 m | 2.7×1.9×2.6 m | 3.7×1.2×2.4 m | 3.3×2.0×2.3 m | 4.0×2.3×2.7 m | 4×3×3.1 m
Solids Screening Capacity (t/h) | 10–25 | 16–40 | 20–50 | 25–62.5 | 25–62.5 | 25–62.5 | 30–75

Notes on typical procurement ranges and system composition

• Entry-level single-loop units are economical when relying on an existing feed pump (lower capital outlay).
• Internal circulation units include built-in horizontal slurry pumps and twin hydrocyclones for broad geology versatility.
• For closed-loop near-zero discharge solutions combine separators with filter presses and suitable dewatering equipment (multi-stage plants for large projects).

Technical specifications

• Product family / model series: YG series (models include YG-100A, YG-160B, YG-200B, YG-250A/B/C, YG-300C).
• Max slurry handling capacity per model: 100–300 m³/h (depending on model).
• Total installed power per model: ranges from 0.5 kW up to 59.4 kW.
• Vibratory motors: typically two motors; examples 0.25 kW×2 up to 2.2 kW×2 depending on model.
• Typical solids (sand) content after purification: less than 2%.
• Separation d50 particle size capability: about 180 μm.
• Maximum moisture content in discharged material: up to 30%.
• Solids screening (dry) capacity range: approx. 10–75 t/h depending on model.
• Typical machine weights: 550 kg up to 5,500 kg depending on model and configuration.
• Common configurations: single-loop (external feed pump), internal circulation (built-in high-chrome slurry pump), multi-cyclone high-capacity plants; can be paired with filter press for fine solids removal.
• Recommended site power: three-phase 380V supply preferred; off-grid sites require appropriately sized generator sets.
