Water tank cleaning robot YG series

wet cleaningno man entryhigh-pressure

Overview

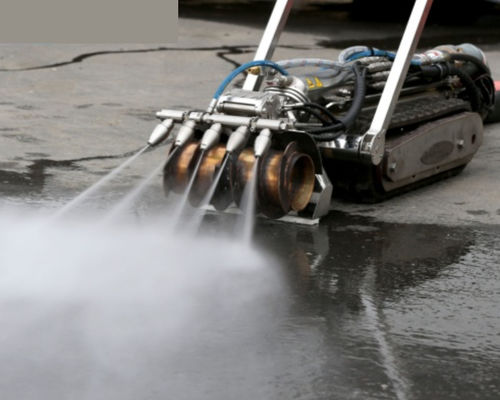

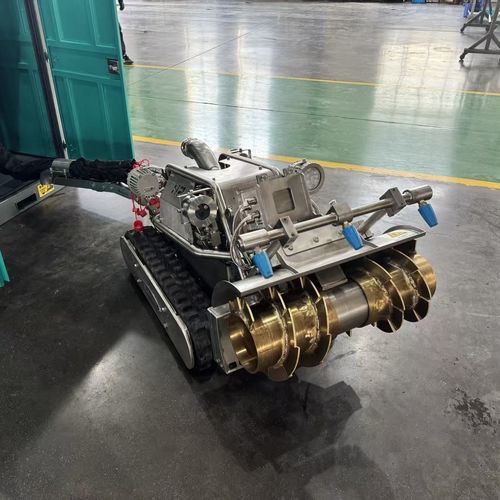

An industrial tank cleaning robot is a remote-controlled cleaning system designed to operate in hazardous and confined spaces. It is built to clean oil, chemical and wastewater tanks by combining high-pressure spray, suction and automated movement to deliver thorough cleaning while reducing manual entry and associated risks. The robot offers a faster, safer alternative to traditional tank-cleaning methods by enabling cleaning operations without personnel entering the tank.

Key Features

• Remote control operation – Pilot the unit from outside the tank to ensure operator safety.
• 360° rotating nozzle system – Ensures complete coverage of tank interiors.
• High-pressure pump & vacuum system – Breaks down sludge, removes sediment and cleans tank walls.
• Compact entry design – Fits through manways as small as 600 mm diameter.
• Explosion-proof & corrosion-resistant options – Configurations available for hazardous or corrosive environments.
• Modular construction – Simplifies maintenance and spare-part replacement.

Technical Advantages

• Corrosion resistance – Stainless steel body with optional full-copper construction for highly corrosive media.
• Explosion-proof motor – Available for volatile or hazardous atmospheres.
• High cleaning efficiency – Cleans large tanks faster than manual methods, improving productivity.
• Low operating costs – Reduces labour and removes the need for confined-space entry permits.
• Precise cleaning – Automated path guidance and nozzle control for high-precision cleaning and reduced rework.

Parameters
Model: YG-500, YG-600, YG-700, YG-800, YG-900, YG-1200
Robot Size: 1500*500*650mm; 1500*600*650mm; 1600*700*650mm; 1600*850*700mm; 1650*960*750mm; 1900*1200*750mm
Dredging Width: 500mm; 600mm; 700mm; 800mm; 900mm; 1200mm
Track Travel Speed: 3-15 m/s (all models)
Water Pump Flow Rate: 100 m³; 100 m³; 160 m³; 160 m³; 200 m³; 200 m³
Water Pump Head: 0-30 m (YG-500, YG-600); 0-25 m (YG-700 to YG-1200)
Hydraulic Station Dimensions: 2200*1200*1700 mm (most models); 2120*1240*1200 mm (YG-1200)
Main Motor Power: 18 kW (YG-500, YG-600); 22 kW (YG-700, YG-800, YG-900); 45 kW (YG-1200)

Applications

• Oil storage tanks – Effective removal of sludge and sediment from petroleum storage tanks.
• Chemical plant tanks – Suitable for vessels containing hazardous chemicals and high temperatures.
• Wastewater treatment tanks – Ideal for sewage treatment plants to reduce odours and improve flow.
• Industrial process tanks – Applicable to food, beverage and pharmaceutical process tanks.
• Fuel tank cleaning – Removes sludge from large fuel storage tanks to maintain operation.

Customization Options

• Full copper body – For enhanced durability in corrosive environments.
• Explosion-proof motor – For operation in hazardous, explosive atmospheres.
• Adjustable pressure – Pressure settings configurable for light to heavy sludge deposits.
• Vacuum & pump system options – Integrated vacuum or separate pump systems available.
• Remote monitoring & data logging – Tracks operational performance for compliance and analysis.

Technical specifications

• Models available: YG-500, YG-600, YG-700, YG-800, YG-900, YG-1200.
• Robot sizes range from 1500*500*650mm to 1900*1200*750mm depending on model.
• Dredging width options: 500 mm to 1200 mm.
• Track travel speed: 3-15 m/s.
• Water pump flow rates from 100 m³ to 200 m³ (model dependent).
• Water pump head up to 30 m (model dependent).
• Main motor power from 18 kW up to 45 kW (model dependent).
• Hydraulic station dimensions typically 2200*1200*1700 mm (YG-1200 uses 2120*1240*1200 mm).
• Options: explosion-proof motor, full copper body, adjustable pressure, various vacuum/pump configurations, remote monitoring.
