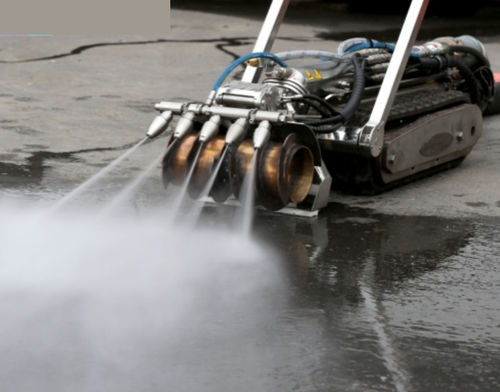

Basin cleaning robot YG series

for water tanksduct and pipewet cleaning

Overview
In industrial water treatment and municipal wastewater management, the YG sludge cleaning robot automates sludge removal in tanks, pipelines and open water, reducing operator exposure and improving cleaning consistency. It is designed to operate in confined, abrasive and corrosive environments by combining navigation, high-efficiency suction and corrosion-resistant materials.

Core features

• High-efficiency sludge suction system: capable of removing thick sediment layers and high-concentration sludge zones.
• Intelligent navigation: integrated sensors and cameras map complex tank and pipeline geometries for precise cleaning.
• Durable construction: corrosion-resistant materials and components for prolonged operation in industrial water environments.
• Remote monitoring and control: real-time supervision and remote operation to limit worker exposure.

Technical specifications (YG series)

• Models: YG-500, YG-600, YG-700, YG-800, YG-900, YG-1200.
• Robot size (L×W×H): YG-500 1500×500×650 mm; YG-600 1500×600×650 mm; YG-700 1600×700×650 mm; YG-800 1600×850×700 mm; YG-900 1650×960×750 mm; YG-1200 1900×1200×750 mm.
• Dredging width: 500 / 600 / 700 / 800 / 900 / 1200 mm.
• Track travel speed: 3–15 m/s (all models).
• Water pump flow rate: 100 / 100 / 160 / 160 / 200 / 200 m³/h (by model).
• Water pump head: 0–30 m (early models), 0–25 m (others).
• Hydraulic station dimensions: typically 2200×1200×1700 mm (one model 2120×1240×1200 mm).
• Main motor power: 18 kW, 18 kW, 22 kW, 22 kW, 22 kW, 45 kW (by model).

Applications

• Water storage tanks: cleaning large tanks and preventing sediment buildup.
• Pipelines: integration with inspection systems to remove deposits and reduce blockages.
• Factory sediment removal: maintenance of settling tanks, clarifiers and waste-handling systems.
• Reservoirs, rivers and ponds: underwater dredging for continuous sediment management below the waterline.

Key advantages

• Automation reduces labor and limits worker exposure to hazardous sludge and wastewater.
• High operational efficiency shortens cleaning cycles and reduces plant downtime.
• Improved safety through remote operation and real-time monitoring.
• Supports environmental compliance by preventing sediment accumulation and improving flow.

FAQs (summary)

• Can these robots work in narrow pipelines? Yes; select models include compact dredging features for confined spaces.
• Are they suitable for high-concentration sludge? Yes; suction and dredging systems are designed to handle dense sediments.
• Do they support remote monitoring? Yes; models offer remote control and real-time monitoring for safe oversight.
