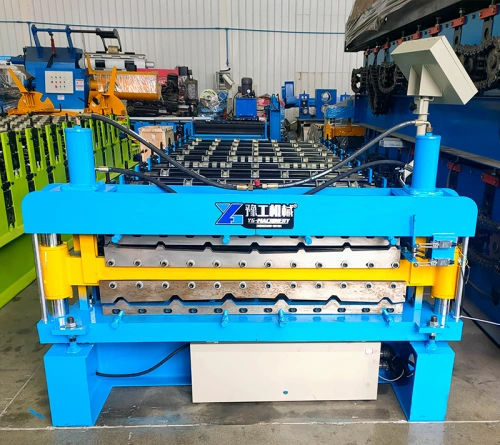

Wall panel roll forming machine

for roof panelsfor profilesfor panels

Product overview
Choosing a cost-effective roll forming machine is critical for factory expansion or contract operations in international construction and sheet metal processing markets. Machine quality varies across suppliers; common buyer issues include sheet alignment errors, roller shaft deformation, and hydraulic overheating. This document presents technical details and buying considerations for roll forming machines.

Applications

• Roofing and wall systems: Lines with feeding widths from 914 mm to 1250 mm produce single-layer color steel or tile profiles for industrial and residential shelters.
• Insulated sandwich panels: Integrated with PU, EPS, or rockwool production lines to manufacture fire-retardant insulated wall and roof panels.
• Structural purlins and keels: CZ purlin machines and light steel keel formers produce load-bearing purlins and interior wall frames with rapid setup.
• Transportation infrastructure: Guardrail formers and gutter machines produce highway safety barriers and high-capacity drainage channels.

Practical buying considerations

• Standard configuration: Verify whether the unit includes an automatic decoiler, PLC control panel, and run-out tables.
• Forming speed and output: Typical lines operate at 0–15 m/min; specialized profiles or high-speed units can reach ~20 m/min.
• Changeover downtime: Automatic interchangeable units reduce profile changeover times significantly compared with manual adjustments.
• Material compatibility: Test locally sourced coil samples with the manufacturer, since material hardness and spring-back vary by mill.

Roll forming machine parameters (from product specification table)
Material - Applicable material: GI (Galvanized Steel Sheet) / PPGI
Material thickness: 0.12-0.5 mm
Yield strength compatibility: 235 / 345 / 550 MPa
Baseframe: H400/450 type steel
Roller material: 45# steel, heat treated to HRC58-62
Roller stations: 22 steps
Shaft diameter: 80 mm / 75 mm
Machine dimensions: 10000 x 2000 x 2000 mm
Machine weight: 10000 (manufacturer specification)
Machine color: Blue (RAL5015) + Orange (RAL2004) default
Working/forming speed: 15 m/min
Cutter hardness: Heat treated to HRC58-62
Cutting tolerance: ±1 mm
Cutter material: Cr12MoV (Z200C12), designed for ≥1,000,000 cuts
Operation: PLC control
Drive: Gear / Sprocket transmission
Main motor: 7.5 kW
Pump motor for cutter: 3.5 kW
Voltage: 220/380/415/480V - 50/60Hz / 3Ph (to be confirmed)
PLC control system: Inverter by Schneider Electric or DELTA; Touch screen: WEINVIEW; Encoder: KOYO or OMRON
Control voltage: 24 V
Options: Automatic stacker and printer

Key technical points & recommendations

• Feeding width and sheet thickness determine the suitable machine family; standard prepainted/galvanized sheets typically 0.2–0.8 mm.
• For precise profiles and reduced distortion choose equipment with 16–22 roller stations and shaft diameters ≥70 mm.
• Prefer rollers made of Cr12MoV with hardened surface (HRC58-62) for longer life; consider hard chrome plating for coastal or high-humidity environments.
• Ensure the PLC touchscreen supports required operator languages for onboarding.
• Confirm complete electrical/power configuration (voltage and phase) before purchase.

Technical specifications

• Applicable material: GI / PPGI
• Material thickness range: 0.12 - 0.5 mm
• Yield strength compatibility: 235 / 345 / 550 MPa
• Baseframe: H400/450 type steel
• Roller material: 45# steel, heat treated to HRC58-62
• Roller stations: 22 steps
• Shaft diameter: 80 mm / 75 mm
• Machine dimensions: 10000 x 2000 x 2000 mm
• Machine weight: 10000 (as specified)
• Color: Blue (RAL5015) + Orange (RAL2004) default
• Working/forming speed: 15 m/min
• Cutter material and life: Cr12MoV (Z200C12), ≥1,000,000 cuts
• Cutting tolerance: ±1 mm
• Main motor power: 7.5 kW; pump motor for cutter: 3.5 kW
• Drive: Gear / Sprocket transmission
• PLC control: Schneider/DELTA inverter, WEINVIEW touchscreen, KOYO/OMRON encoder
• Control voltage: 24 V
• Optional: Automatic stacker and printer
