Hydraulic dredger YG series

remote-controlled

Product Overview
A dredging robot designed for efficient removal of silt and sludge from rivers, lakes, reservoirs and ponds. Remote-controlled and shore-powered via a hydraulic station, the YG series replaces manual dredging and conventional small dredgers for contractors and municipal water authorities.

How it Works

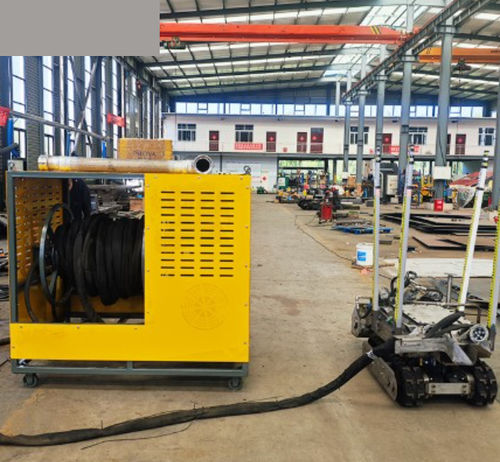

The unit operates submerged and is piloted remotely from shore. A shore-based hydraulic power unit connects to the robot via high-pressure hoses. The robot advances on tracked drives, uses a suction pump to collect sediment and transmits real-time video and positioning data for precise dredging. Suited to deep, narrow or difficult-to-access locations.

Main Features and Benefits

• High efficiency: Continuous operation with extended daily working periods.
• Operator safety: Crew remain on land, eliminating exposure to unstable banks and contaminated sludge.
• Energy efficiency: Lower fuel and energy use compared with many traditional dredgers.
• Precision cleaning: Effective in narrow channels, ponds and treatment tanks while minimizing environmental disturbance.
• Smart control: Real-time video and positioning enable accurate trenching and spot cleaning.

Main Application Areas

• Port channel and berthing maintenance for navigation and draught recovery.
• Inland river and canal management to restore flow and habitat quality.
• Lake and reservoir dredging to recover storage capacity and limit eutrophication.
• Industrial and municipal wastewater treatment facilities for sediment and sludge removal.
• Water conservancy projects: underwater excavation, pipeline clearing and maintenance.
• Emergency response and post-disaster cleanup in challenging conditions.

Dredging Robot Parameters
Model: YG-500 | YG-600 | YG-700 | YG-800 | YG-900 | YG-1200
Robot Size: 1500*500*650 mm | 1500*600*650 mm | 1600*700*650 mm | 1600*850*700 mm | 1650*960*750 mm | 1900*1200*750 mm
Dredging Width: 500 mm | 600 mm | 700 mm | 800 mm | 900 mm | 1200 mm
Track Travel Speed: 3–15 m/s (model dependent)
Water Pump Flow Rate: 100–200 m3/h (model dependent)
Water Pump Head: 0–25/30 m (model dependent)
Hydraulic Station Dimensions: 2200*1200*1700 mm (typ.) | 2120*1240*1200 mm (YG-1200)
Main Motor Power: 18 kW | 22 kW | 45 kW (model dependent)

Technical specifications

• Available models: YG-500, YG-600, YG-700, YG-800, YG-900, YG-1200.
• Overall size range: 1500*500*650 mm up to 1900*1200*750 mm.
• Dredging width: 500–1200 mm.
• Track travel speed: 3–15 m/s.
• Pump flow rate: 100–200 m3/h depending on model.
• Pump head: up to 25–30 m depending on model.
• Hydraulic shore station supplies power via high-pressure hoses; remote control with video and positioning.
• Main motor power range: 18–45 kW.
