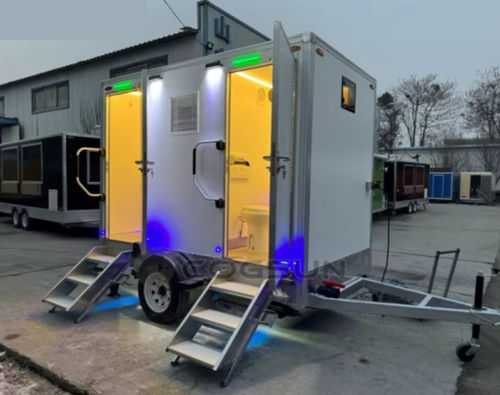

Equipped sanitary container YG Towable Toilet

Overview
The YG towable toilet is a mobile porta-potty trailer engineered for rapid relocation and improved user comfort at sites without permanent sanitary facilities. It is available in single- and multi-stall configurations and features large waste tanks, HVAC climate control, foot-pedal or foot-flush toilets, and a torsion axle for stable towing.

Towable Toilet Parameters
1-person unit — External: 2200×1800×2450 mm; Axle: single torsion axle with brake, load capacity 2500 kg; Tires: 2 × 195/70 R15; Wall: 40 mm FRP sandwich panel; Fresh water tank: 450 L stainless steel; Waste tank: 750 L stainless steel; Compartments: single; Toilets: 1 foot-pedal/foot-flush; Urinal: 1; Basins: 1; Mirrors: 1 with light; Water heater: 1 hot & cold system; Soap dispenser: 1; Paper towel box: 1 stainless steel; Toilet paper holder: 1; Lighting: motion sensor; HVAC: 1 set; Music system: 1; Steps: 1 foldable step.
2-person unit — External: 3000×1800×2450 mm; Axle: single torsion axle with brake, load capacity 2500 kg; Tires: 2 × 195/70 R15; Wall: 40 mm FRP sandwich panel; Fresh water tank: 400 L stainless steel; Waste tank: 800 L stainless steel; Compartments: 2 + 1 utility room; Toilets: 2; Urinal: 1 wall-mounted; Basins: 2; Mirrors: 2 with lights; Water heater: 2; Soap dispensers: 2; Paper towel box: 1 stainless steel; Toilet paper holders: 2; Lighting: motion sensor; HVAC: 1 unit; Music system: 2; Steps: 2 foldable steps.

Load Capacity and Stability

• Structural material: Walls use 40 mm FRP (fiberglass reinforced plastic) sandwich panels for thermal insulation and ease of cleaning.
• Axle load capacity: Single torsion axle with brakes rated at 2500 kg for safe towing under full load.
• Tire specification: Two tires, size 195/70 R15, selected for standard towing stability.

Core Capacity and Waste Management

• Fresh water capacity: Up to 450 L stainless steel tank (example for 1-person unit).
• Waste tank volume: 750 L stainless steel waste tank (1-person spec) and 800 L for some multi-stall units; large volume reduces emptying frequency.
• Operational benefit: Increased tank capacity extends service intervals, lowering servicing costs and improving rental uptime.

Comfort Upgrades

• HVAC system: Integrated air conditioning and ventilation for climate control inside the unit.
• Interior amenities: Foot-flush or foot-pedal toilets, illuminated vanity mirrors, hot & cold water systems, music playback, LED lighting and hygienic finishes.

Wide Application Scenarios

• Outdoor concerts, film production sets, military exercises, beach events, disaster relief camps and construction sites lacking permanent sanitary facilities.
• Designed for rapid on-site deployment and simple utility hookup; deployment time can be measured in minutes.

Customization and Compliance

• Size customization: Units configurable from single-stall (2200×1800×2450 mm) up to multi-stall examples (up to 5500×1800×2450 mm for 4-stall layouts).
• Functional customization: Convert stalls to shower rooms, upgrade interior fittings for premium variants, or adapt stall sizes to meet accessibility standards.
• Sanitation protocol: Stainless steel tanks and easy-to-clean FRP panels to support high hygiene standards and simple maintenance.

Technical specifications

• Brand: YG Machinery
• Commercial designation: YG Towable Toilet
• External dimensions (examples): 1-person 2200×1800×2450 mm; 2-person 3000×1800×2450 mm; up to 4-stall 5500×1800×2450 mm (customizable)
• Chassis/Axle: Single torsion axle with brake, load capacity 2500 kg
• Tires: 2 × 195/70 R15
• Wall material: 40 mm fiberglass (FRP) sandwich panel
• Fresh water tank: 450 L stainless steel (1-person); 400 L example for 2-person units
• Waste tank capacity: 750 L stainless steel (1-person spec); 800 L for some multi-stall units
• Compartments: single compartment (1-person) or 2 compartments + 1 utility room (2-person)
• Toilets: 1 foot-pedal/foot-flush toilet (1-person), 2 toilets (2-person)
• Urinal: 1 (1-person), 1 wall-mounted (2-person)
• Wash basins: 1 (1-person), 2 (2-person)
• Vanity mirrors with lights: 1 (1-person), 2 (2-person)
• Water heater: hot & cold water system (counts vary by configuration)
• Soap dispensers: 1 or 2 depending on unit
• Paper towel box: 1 stainless steel
• Toilet paper holders: 1 or 2 depending on unit
• Lighting: motion sensor lights
• Air conditioning / HVAC: integrated unit(s) included
• Music/audio playback system: included (1 or more sets depending on configuration)
• Steps: foldable steps (1 or 2 depending on configuration)
• Materials in contact with liquids: stainless steel tanks for durability and hygiene
• Deployment: designed for rapid on-site deployment and hookup
