Packaging stretch wrapper YG series

turntableautomaticindustrial

Product overview
Purchasing an industrial stretch film machine is a major investment for packaging lines and plants. This document summarises key design choices, performance attributes and selection criteria from YG Machinery to help production managers reduce scrap and optimise output.

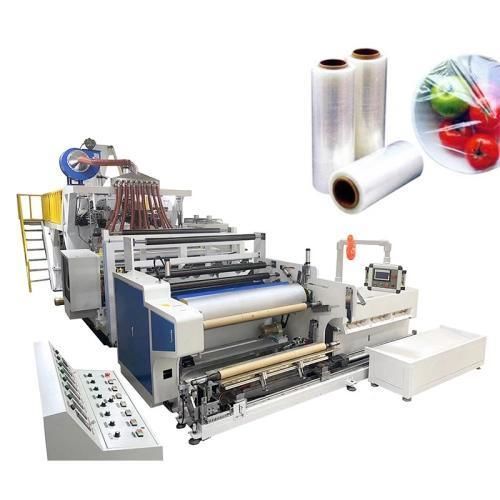

Cast-type stretch film machine
Cast extrusion lines use a flat T-die and water-cooled chill rolls to produce films with superior clarity and lower resin crystallinity. The cast design increases puncture resistance by over 30% compared with blown-film systems and supports stable line speeds above 200 m/min when paired with an efficient extrusion line.

Core applications

• Pallet wrapping: Produces 15–25 µm hand and machine wraps to secure goods for ocean and land transport.
• Food packaging: Works with PVC extrusion or dedicated PE screws to produce crystal-clear cling film for food protection.
• Electronics protection: Produces anti-static stretch films to prevent dust adhesion and static build-up.
• Heavy machinery packaging: Integrates with bubble-film or air-column systems to provide multi-layer cushioning.

Key selection parameters

• Screw L/D ratio: 30:1 or 32:1 recommended for uniform plasticization and melt homogeneity.
• Automatic winding: Automated roll changers reduce manual handling by ~80% and minimise scrap during roll swaps.
• Temperature control: PLC-based temperature management keeping variations within ±1°C prevents uneven film thickness.

Pro tips

• For packaging sharp metal parts, select 3-layer or 5-layer co-extrusion models to improve tear resistance.
• Confirm die-adjustment bolts and contact surfaces use hot-work die steel to limit premature wear.
• Use inline edge-trim recycling (edge-trim crusher) to reduce resin waste and lower material costs.

Case study
A Southeast Asian factory replaced an older line with a high-precision stretch film machine from YG Machinery featuring an optimized screw design and an edge-trim recycling system. Scrap rate fell from 18% to below 2% and daily output increased by 120%.

Technical parameters table
Name | Unit | YG600D | YG1000D | YG1250D | YG600S | YG1000S | YG1000SA
Type | | Double-side sticky | Double-side sticky | Double-side sticky | Single-side sticky | Single-side sticky | Single-side sticky
Screw | MM | 45 | 65 | 80 | 45+45 | 65+65 | 80+55
L/D ratio | L/D | 33:1 | 33:1 | 30:1 | 33:1 | 33:1 | 30:1
Motor power of extruder | KW | 7.5 | 22 | 37 | 7.5×2 | 22×2 | 37×2
The effective width of dia | MM | 700 | 1250 | 1250 | 700 | 1250 | 1250
Width of product (option) | MM | 500,600 | 1000 | 1000 | 500,600 | 1000 | 1000
Length of roller | MM | 700 | 1250 | 1250 | 700 | 1250 | 1250
Draw-off power of roller | KW | 0.75 | 4 | 8 | 2.2 | 4 | 8
Winding dia | MM | 100-200 | 100-200 | 100-200 | 100-200 | 100-200 | 100-200
Dimensions (LxWxH) | MM | 8000*2400*2500 | 9000*5000*2800 | 10000*3000*4000 | 8000*2400*2500 | 10000*5000*2800 | 10000*3000*4000

Technical specifications

• Models: YG600D, YG1000D, YG1250D, YG600S, YG1000S, YG1000SA.
• Types: Double-side sticky (YG600D, YG1000D, YG1250D); Single-side sticky (YG600S, YG1000S, YG1000SA).
• Screw diameters: 45 mm (YG600D), 65 mm (YG1000D), 80 mm (YG1250D); tandem or multi-screw configurations as specified.
• L/D ratios: 33:1 (most models) and 30:1 (YG1250D, YG1000SA) for appropriate melt residence time.
• Extruder motor power: 7.5 kW up to 37 kW (single or dual motors depending on model).
• Effective width: 700 mm or 1250 mm depending on model.
• Product width options: 500/600 mm or 1000 mm.
• Roller length: 700 mm or 1250 mm.
• Draw-off power (roller): 0.75 kW to 8 kW depending on model.
• Winding diameter range: 100–200 mm.
• Machine dimensions (L×W×H mm): refer to model table above.
• Output characteristics: cast-type design with flat T-die and water-cooled chill rolls, providing improved clarity, >30% higher puncture resistance and stable line speeds above 200 m/min.
