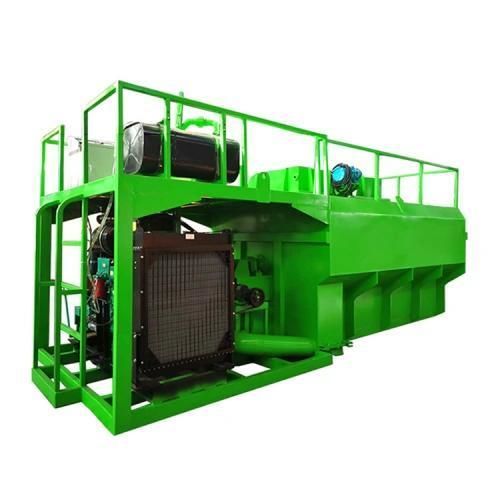

Diesel engine spraying machine YGZYP series

Overview
Hydroseeders of the YGZYP series are mobile slurry spraying units designed for slope stabilization, mine revegetation, riverbank and dam protection, and large-area vegetation recovery. Buyers often compare only tank volume; critical factors such as pump type, maximum vertical lift and allowable particle/fiber size strongly influence on-site performance. This document summarizes key selection criteria, model parameters, real-world cases and operation notes for hydroseeders.

Hydroseeder Parameters (table)
Item | YGZYP-2 | YGZYP-4 | YGZYP-6 | YGZYP-8
Tank Volume | 2m³ | 4m³ | 6m³ | 8m³
Spraying Area | 200–500 m² | 500–1500 m² | 700–2000 m² | 1000–2500 m²
Spraying Distance (H) | H 20–30 m | H 20–35 m | H 20–35 m | H 24–40 m
Spraying Distance (V) | V 10–20 m | V 10–25 m | V 10–25 m | V 15–30 m
Pipe Head (H) | H 20–50 m | H 20–60 m | H 20–70 m | H 30–80 m
Pipe Head (V) | V 20–30 m | V 30–40 m | V 30–40 m | V 30–50 m
Weight | ~1000 kg | ~1300 kg | ~1600 kg | ~1900 kg
Dimension | 2.5×1.5×1.4 m | 3.3×1.5×2.4 m | 3.6×1.8×2.4 m | 4.2×1.8×2.4 m

What project sites fit a hydroseeder?

• Highway and railway slopes: mixed rock‑soil and weathered rock faces require sufficient vertical lift and often anchoring (wire mesh) before spraying.
• Mine site revegetation: steep bare rock slopes — select pump and flow path to avoid clogging from fibers and wood chips.
• Riverbank and dam protection: control slurry thickness; strong bonding and correct spray overlap reduce washout risk.
• Urban green renovation and desert restoration: rapid cover over large areas where spray reach and tank capacity determine productivity.

Key specs you must check before buying a hydroseeder

• Mud pump type: single‑stage pumps have wider flow channels and better handle straw/grass/wood fibers; multi‑stage pumps give higher pressure but are more prone to clogging with long fibers.
• Maximum vertical lift: effective spray height drops with heavy sand content or thick slurry; consider margin for particle load.
• Tank volume: 2–4 m³ suits small municipal jobs; 6–8 m³ suits mines and major highway projects.
• Power unit: verify diesel engine performance at intended altitude; output decreases without altitude tuning.

Real‑world client case: mine revegetation
A contractor working on an abandoned mine faced 70° bare rock slopes with a 32 m vertical drop and required a 7–9 cm spray thickness using a mix of wood chips and grass fiber. Multi‑stage pumps clogged frequently, reducing daily output. Replacing the unit with an 8 m³ hydroseeder equipped with a single‑stage booster mud pump restored reliable operation: each tank covered about 350 m² per fill, spray runs were faster, and the project completed in two months with germination above 82% and resistance to rain wash tests. Lesson: pump design can matter more than tank size when particle and fiber content are high.

Operation & on‑site practical notes

• Crew: two operators for direct gun spraying; remote or long‑hose applications may require 3–5 personnel to handle hoses and repositioning.
• Spare parts to keep on site: mud pump packing, sealing gaskets, a set of nozzles and diesel filter elements; lacking spares can stop work immediately.
• Site preparation tip: remove loose rock fragments on rock slopes to prevent the sprayed layer from sliding before curing.

Technical characteristics / specifications

• Model series: YGZYP (YGZYP-2, YGZYP-4, YGZYP-6, YGZYP-8).
• Tank volumes: 2, 4, 6, 8 m³.
• Spraying area ranges: 200–2500 m² depending on model.
• Typical spraying reach (vertical/horizontal): up to H 40 m and V 30 m (model dependent); pipe head reach up to H 80 m and V 50 m on the largest model.
• Weights: ~1000–1900 kg across models.
• Dimensions vary by model (examples above).
• Recommended pump selection: single‑stage (wide flow) for fiber/wood‑chip heavy slurries; multi‑stage for higher pressure with cleaner slurry.
• Recommended uses: slope stabilization, mine revegetation, riverbank/dam protection, urban green renovation, desert restoration.
• On‑site considerations: particle size and fiber content, vertical lift needs, engine performance at altitude, and availability of spare parts.
