Equipped sanitary container Toilet Shower

Overview

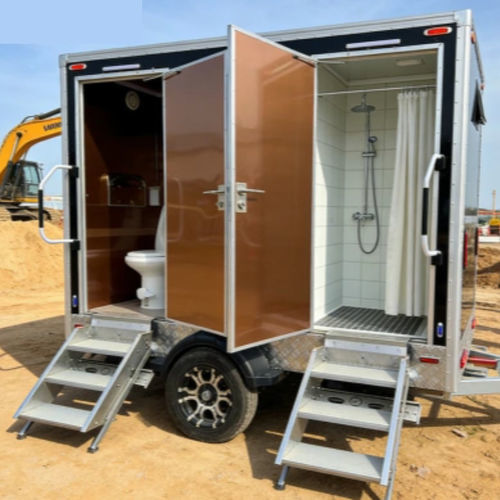

The Toilet Shower Trailer is a towable sanitation unit combining toilet and shower facilities in a single movable platform. It is designed for construction sites, outdoor events, emergency relief and remote hospitality where temporary sanitation is required. YG Machinery provides configurations, capacity data and material specifications to support procurement and deployment decisions.

Key Features

• Integrated toilet and shower in a towable trailer unit
• 40mm fiberglass sandwich panel walls
• Hot & cold water system with insulated stainless steel tanks
• Motion sensor interior lighting
• Foldable steps and optional HVAC (air conditioning)
• Torsion axle with brake and 195/70 R15 tires

Toilet Shower Trailer Parameters
Parameter | 1-Person Unit | 2-Person Unit
External Dimensions | 2200×1800×2450 mm | 3000×1800×2450 mm
Axle | Single torsion axle with brake, load capacity 2500 kg | Single torsion axle with brake, load capacity 2500 kg
Tires | 2 × 195/70 R15 | 2 × 195/70 R15
Wall Material | 40 mm fiberglass sandwich panel | 40 mm fiberglass sandwich panel
Fresh Water Tank | 450 L stainless steel water tank | 400 L clean water tank
Waste Water Tank | 750 L stainless steel waste tank | 800 L waste water tank
Compartments | Single compartment | 2 compartments + 1 utility room
Toilet | 1 foot-pedal toilet | 2 toilets
Urinal | 1 urinal | 1 wall-mounted urinal
Wash Basin | 1 basin | 2 basins
Vanity Mirror | 1 vanity mirror with light | 2 vanity mirrors with lights
Water Heater | 1 hot & cold water system | 2 systems
Soap Dispenser | 1 | 2
Paper Towel Box | 1 stainless steel | 1 stainless steel
Toilet Paper Holder | 1 | 2
Lighting | Motion sensor light | Motion sensor light
Air Conditioning | 1 set (optional) | 1 unit (optional)
Music System | 1 set | 2 sets
Steps | 1 foldable step | 2 foldable steps

Core Specifications & Data Support

• Main offered configurations: 2-room version (3000×1800×2450 mm) with one toilet compartment + one shower area (~1.2 tons listed) and 3-room model (4500×1800×2450 mm) including an additional toilet (~1.5 tons listed).
• Walls: 40 mm fiberglass sandwich panels — corrosion-resistant, reduced heat absorption vs steel panels (manufacturer data ≈60% reduction).
• Axle and mobility: torsion axle with brakes rated for 2500 kg; paired with 195/70 R15 tires for stable towing.
• Water systems: standard hot water system reaches ~50°C in ~10 minutes, approx. 1.5 kWh consumption.

How to Choose the Right Unit

• Short events (1–3 days): guideline approx. one 2-room unit per 100 attendees.
• Long-term work sites: a 3-room model can serve ~20 workers depending on shifts.
• Climate options: add air conditioning for hot climates (example 1.5 HP) or insulated tanks for freeze protection to around −10°C.
• Footprint: 2-room model typically needs a 4×2 m footprint plus a 0.5 m buffer.

Maintenance Tips & Operating Costs

• Daily: routine cleaning ~15 minutes/day; estimated consumables cost under $2/day.
• Weekly: clean fresh water tank with neutral detergent (nominal monthly cost ≈ $5).
• Annual: replace water filter and inspect axle; estimated annual maintenance ≈ $120.
• Waste management: drain waste tank at ~80% capacity to reduce odors and extend tank life.

Application Scenarios

• Construction sites — temporary sanitation where permanent facilities are unavailable.
• Outdoor events and festivals — improved attendee services with shower options.
• Emergency relief — rapid deployment for post-disaster sanitation needs.
• Remote resorts and camps — guest sanitation where utilities are limited.

Technical specifications

• Product name: Toilet Shower Trailer
• Brand: YG Machinery
• Wall material: 40 mm fiberglass sandwich panel
• Axle: single torsion axle with brake, load capacity 2500 kg
• Tires: 195/70 R15 (2 pieces)
• Fresh water tank capacity: typical 400–450 L (stainless steel)
• Waste water tank capacity: typical 750–800 L (stainless steel)
• Configurations (examples): 1-person 2200×1800×2450 mm; 2-room 3000×1800×2450 mm; 3-room 4500×1800×2450 mm
• Weights: 2-room ≈ 1.2 tons; 3-room ≈ 1.5 tons
• Toilet: foot-pedal type (1–2 depending on layout)
• Water heater: hot & cold water system, heats to ~50°C in ~10 min, ~1.5 kWh consumption
• Lighting: motion sensor lights
• HVAC: optional air conditioning (example 1.5 HP)
• Other fittings: urinals, wash basins, vanity mirrors with light, soap dispensers, stainless steel paper towel box, toilet paper holders, foldable steps
• Typical applications: construction, events, emergency support, remote hospitality
