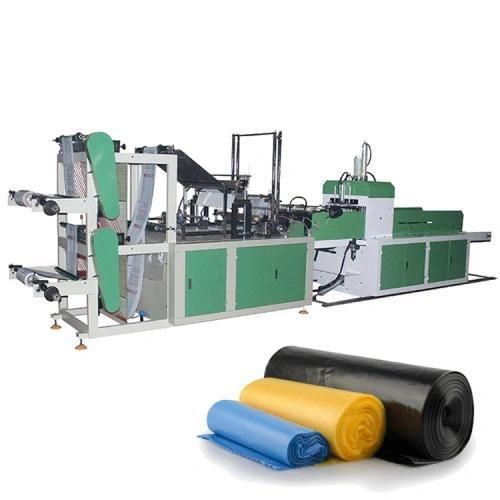

Plastic bag making machine YG-A series

heavy-dutyhigh-speed

Overview
Buying a plastic bag making machine requires assessing real output, material compatibility and sealing control rather than only initial price. The YG-A series offers multiple models to cover film widths from 100 mm to 1000 mm and speeds suitable for small runs up to mass output scenarios. Verify actual performance with your film type to determine total cost of ownership.

Key applications

• Construction projects: produce heavy-duty polythene bags, cement sacks and aggregate pouches that need high seam strength.
• Logistics & warehousing: manufacture courier envelopes, tamper-evident bags and padded mailers with fast cut-off and glue-strip options.
• Medical & food packaging: operate in controlled environments to produce waste liners, zipper bags and food wraps that meet hygiene requirements.

Performance comparison

• Output speed: Entry-level setups 50–100 pcs/min — Heavy industrial grade 150–300 pcs/min.
• Control system: Stepper motor + photo sensor (entry) — Full servo motors + inverter drives (industrial).
• Scrap rate: typically >3% on low-end units; <0.5% on tuned industrial systems.

Specifications (per model)

• YG-A45 — Suitable film: HDPE/LDPE/LLDPE; Film width 100–500 mm; Roller width 600 mm; Take-up speed 10–100 m/min; Winding motor torque 6 N·m; Winding speed 10–100 m/min; Power supply 380 V, 50 Hz, 3 phase; Dimension approx. 3.8 x 2.0 x 4.1 m.
• YG-A50 — Suitable film: HDPE/LDPE/LLDPE; Film width 300–600 mm; Roller width 700 mm; Take-up speed 10–100 m/min; Winding motor torque 10 N·m; Winding speed 10–100 m/min; Power supply 380 V, 50 Hz, 3 phase; Dimension approx. 5.5 x 2.2 x 4.5 m.
• YG-A55 — Suitable film: HDPE/LDPE/LLDPE; Film width 400–800 mm; Roller width 900 mm; Take-up speed 10–100 m/min (some models 10–80 m/min); Winding motor torque 10 N·m; Winding speed 10–80 m/min; Power supply 380 V, 50 Hz, 3 phase; Dimension approx. 5.5 x 2.5 x 5.2 m.
• YG-A60 — Suitable film: HDPE/LDPE/LLDPE; Film width 500–1000 mm; Roller width 1100 mm; Take-up speed 10–80 m/min; Winding motor torque 16 N·m; Winding speed 10–80 m/min; Power supply 380 V, 50 Hz, 3 phase; Dimension approx. 5.8 x 2.8 x 6.3 m.

Real-world considerations

• Prioritise full servo drives and accurate photo tracking for high-speed runs to reduce film scrap and improve sealing consistency.
• Test machine performance with your actual film samples (including recycled or biodegradable films) to confirm PID heat control and sealing behaviour.
• Fast-wear parts include cutting blades, Teflon tape, heating rods and rubber strips; schedule regular cleaning and lubrication to extend service life.

Technical characteristics

• Model series: YG-A45, YG-A50, YG-A55, YG-A60 (YG-A series).
• Suitable materials: HDPE, LDPE, LLDPE.
• Film width ranges: 100–500 mm (YG-A45); 300–600 mm (YG-A50); 400–800 mm (YG-A55); 500–1000 mm (YG-A60).
• Roller widths: 600 / 700 / 900 / 1100 mm depending on model.
• Take-up & winding speed: typically 10–100 m/min (some models limited to 10–80 m/min).
• Winding motor torque: 6 N·m / 10 N·m / 16 N·m depending on model.
• Type: Surface friction winding type.
• Power supply: 380 V, 50 Hz, 3 phase.
• Machine dimensions vary by model (see specifications above).
