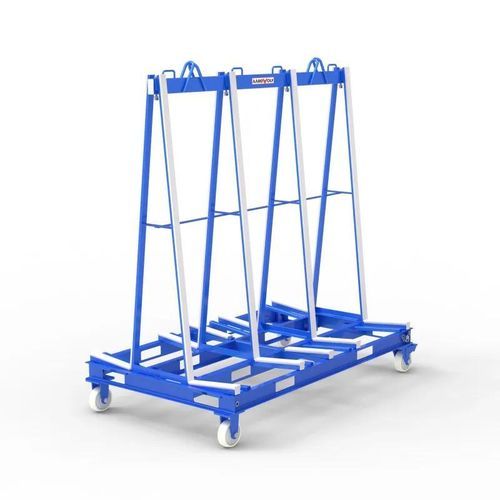

Lifting transport rack FS-1880-1650A-4

for transporthandlingfor materials handling

Overview
The Universal Frame Basic – 4 A-Frames is a steel A-frame rack designed for the storage, handling and transport of standard glass sheets and stone slabs used in fabrication, distribution and installation. With a frame length of 1880 mm and a working height of 1655 mm, the unit accommodates common panel sizes while optimising workshop and site logistics.

Key Features

• Four A-frame support configuration: Four evenly spaced A-frames ensure stable load distribution and clear access for loading and unloading.
• Heavy-duty steel construction: Built from structural steel for reliable performance in industrial environments.
• Integrated forklift pockets: Forklift pockets allow fast, safe movement within warehouses and production areas.
• Certified lifting eyelets: Lifting eyelets support safe crane handling and accurate positioning on site.
• Heavy-duty castor wheels Ø150 mm: Large castors provide smooth manoeuvring over workshop floors.
• Two locking castors: Two foot-operated brakes secure the frame during loading, unloading and storage.

Specifications
Specification | Metric | Imperial
Product Code | FS-1880-1650A-4 | FS-1880-1650A-4
Frame Length | 1880 mm | 74.0 in
Working Height | 1655 mm | 65.2 in
Base Width | 1100 mm | 43.3 in
A-Frame Supports | 4 | 4
Wheel Diameter | Ø150 mm | Ø5.9 in (6 in nominal)
Locking Wheels | 2 | 2
Working Load Capacity | 1,500 kg | 3,307 lb

Technical specifications

• Product Code: FS-1880-1650A-4
• Model / Name: Universal Frame Basic
• Frame Length: 1880 mm
• Working Height: 1655 mm
• Base Width: 1100 mm
• A-Frame Supports: 4 A-frames
• Wheel Diameter: Ø150 mm
• Locking Wheels: 2 (foot-operated brakes)
• Working Load Capacity: 1,500 kg
• Construction: Heavy-duty structural steel
• Features: Integrated forklift pockets, certified lifting eyelets for crane handling, heavy-duty castor wheels
