Handling rack TF2440

Overview

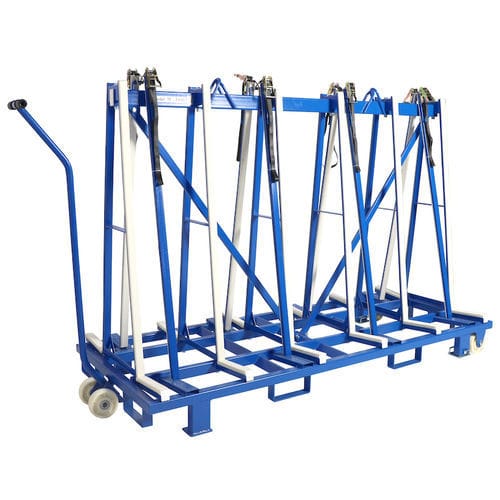

The TF2440 transport frame is a heavy-duty steel frame designed for safe storage and transport of stone and glass slabs (granite, marble, engineered stone, glass and natural stone). It combines forklift-compatible lifting points, replaceable rubber supports and a locking system to minimise movement and surface damage during handling and transport.

Key features

• Steel frame: Powder-coated finish, hot-dip galvanizing available on request.
• Locking system: Locking bars with ratchet straps to secure slabs in place.
• Protective supports: Rubber-coated, replaceable profiles on base and uprights to prevent scratches.
• Forklift-compatible: Integrated receivers and fork through design for balanced lifting.
• Adjustable support legs: Provide stability during truck transport; always lower legs when transporting a loaded frame on a truck.
• Manual manoeuvring: Large counter-lever with wheels and a caster handle for manual movement when required.
• High load capacity: Working load limit 1250 kg per side (2500 kg total on wheels).
• Quick assembly: Pre-installed bolts allow one-person assembly in approx. five minutes.

Specifications (Metric / Imperial)
Number of wheels: 4 pcs / 4 pcs
Number of straps: 8 pcs / 8 pcs
Width of slab storage base area (each side): 268 mm / 10.6"
Length: 2440 mm / 96"
Working load limit per side: 1250 kg / 2756 lb
Total working load limit on the wheels: 2500 kg / 5511 lb
Net weight (total frame): 207 kg / 456 lb
Net weight (caster handle): 8.7 kg / 19 lb
Net weight without caster handle: 197.3 kg / 435 lb
Gross weight: 213 kg / 470 lb
Packaging dimension: L2450 x W1120 x H420 mm / L96.5" x W44.1" x H16.5"

Why choose the TF2440?

• Designed for efficient workshop and on-site handling with forklift receivers on all sides.
• Replaceable rubber lining and secure locking minimise risk of surface damage during transport.
• Versatile for storage, truck transport and crane handling thanks to hook points and balanced fork-through design.

Option & Note
Option: Frames can be hot-dip galvanized on request.
Note: Always lower the support legs when transporting a loaded frame on a truck to ensure stability and safety.

Technical specifications

• Model: TF2440
• Frame finish: Powder-coated steel (optional galvanized)
• Number of wheels: 4
• Number of straps: 8
• Slab storage base width (each side): 268 mm
• Length: 2440 mm
• Working load limit per side: 1250 kg
• Total working load limit (on wheels): 2500 kg
• Net weight (total frame): 207 kg
• Net weight (caster handle): 8.7 kg
• Net weight without caster handle: 197.3 kg
• Gross weight: 213 kg
• Packaging dimensions: 2450 x 1120 x 420 mm
