A-frame rack for joinery FS-1880-1650A-6

Overview

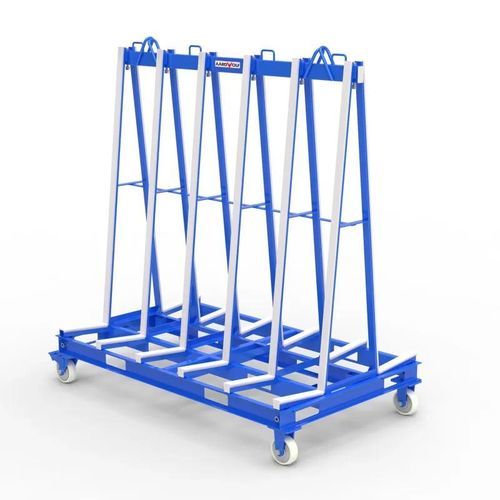

The Universal Frame Basic FS-1880-1650A-6 is an A-frame storage rack engineered for handling and storing glass sheets and stone slabs used in fabrication and installation. With a frame length of 1880 mm and a working A-frame height of 1655 mm, it supports materials such as granite, marble, quartz and glass, optimizing storage density and handling safety in workshops, warehouses and on-site.
Six A-frame supports spaced along the frame provide stable support and even load distribution. Integrated forklift pockets, lifting eyelets and Ø150 mm heavy-duty castor wheels facilitate safe transport, positioning and handling across production lines and project sites.

Key Features

• Six A-frame Support Configuration: improves stability and load distribution for large sheets and slabs.
• Heavy-Duty Steel Construction: designed for industrial use and repeated handling cycles.
• Integrated Forklift Pockets: quick and secure forklift engagement for transport.
• Lifting Eyelets for Crane Handling: allows safe lifting and placement with cranes.
• Ø150 mm Heavy-Duty Castor Wheels: enable smooth movement across workshop floors.
• Two Safety Wheel Brakes: secure the frame during storage and loading operations.

Specifications
Product code — FS-1880-1650A-6
Frame Length — 1880 mm — 74.0 in
Frame Height — 1655 mm — 65.2 in
Base Width — 1100 mm — 43.3 in
A-Frame Supports — 6
Wheel Diameter — Ø150 mm
Wheels with Brakes — 2
Working Load Limit — 1,500 kg — 3,307 lb

Technical specifications

• Model name: Universal Frame Basic
• Product code: FS-1880-1650A-6
• Frame length: 1880 mm
• Frame height (working A-frame height): 1655 mm
• Base width: 1100 mm
• A-frame supports: 6
• Wheel diameter: Ø150 mm castor wheels
• Wheels with brakes: 2
• Working load limit (WLL): 1,500 kg
• Construction: heavy-duty steel with integrated forklift pockets and lifting eyelets
