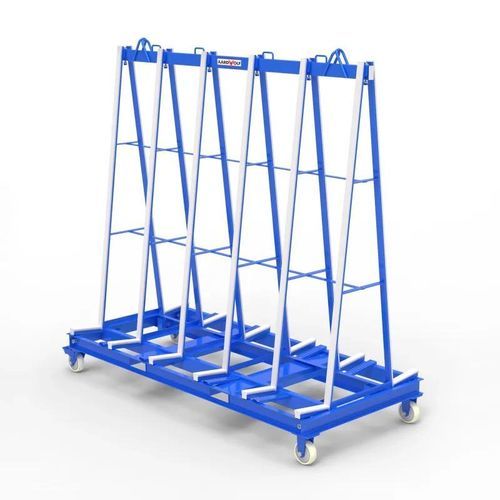

A-frame rack for joinery FS-2440-2050A-6

Overview
The Universal Frame Pro – 6 A-Frames is engineered around the standard slab dimensions widely used throughout today’s stone fabrication and glass processing industries. With a frame length of 2440 mm and a working A-frame height of 2050 mm, it is optimised for granite, marble, quartz, engineered stone and glass sheets commonly used in modern manufacturing and installation projects.
Six A-frame supports are positioned along the frame length to provide reliable material support and maintain stability during storage and transport. Integrated forklift pockets, lifting eyelets and heavy-duty castor wheels help improve handling efficiency for fabricators, material suppliers and installation teams.

Key Features

• Optimised for standard slab sizes: 2440 mm frame length compatible with common slab and sheet dimensions.
• 6 A-frame support configuration for improved load distribution and stability.
• Heavy-duty steel construction for industrial handling and storage applications.
• Integrated forklift pockets for safe and efficient handling.
• Lifting eyelets for crane-assisted positioning on site.
• Ø150 mm heavy-duty castor wheels with two safety brakes for mobility and secure storage.

Specifications
Specification | Metric Value | Imperial Value
Product Code | FS-2440-2050A-6 | FS-2440-2050A-6
Frame Length | 2440 mm | 96.1 in
Base Width | 1100 mm | 43.3 in
Working A-Frame Height | 2050 mm | 80.7 in
A-Frame Supports | 6 | 6
Castor Wheel Diameter | Ø150 mm | Ø5.9 in
Wheels with Brakes | 2 | 2
Working Load Limit | 1,500 kg | 3,307 lb

Characteristics / Technical specifications

• Product Code: FS-2440-2050A-6
• Frame Length: 2440 mm
• Base Width: 1100 mm
• Working A-Frame Height: 2050 mm
• A-Frame Supports: 6
• Castor Wheel Diameter: Ø150 mm
• Wheels with Brakes: 2
• Working Load Limit: 1,500 kg
