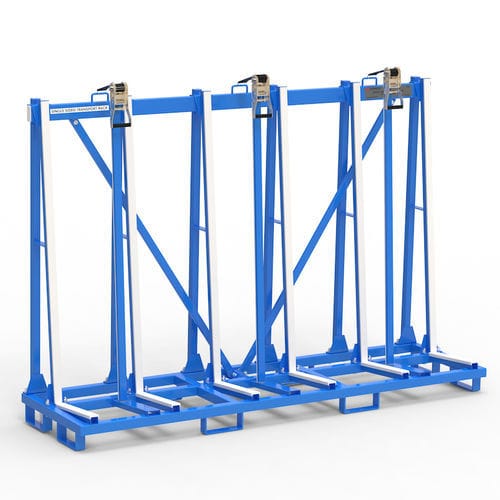

Materials handling transport rack SSTR-2440

storagefor transportfor large glass panels

General
The Aardwolf Single Side Transport Rack is engineered for safe, efficient movement of fabricated panels and slabs of varying sizes. It is designed for industrial transport and on-site handling where secure support and easy adjustment are required.

Features

• Heavy-duty construction fabricated from 40 mm (1.57 in) square steel tubing for enhanced durability.
• Rubber strips mounted on bottom and back supports to protect materials from damage and prevent marking.
• Uprights mount in slotted holes to allow full-depth adjustments and secure stacking.
• Holddowns feature full-length rubber strips with quick-release straps for fast, damage-free securing.
• Heavy-duty powder-coated finish for corrosion resistance in industrial environments.
• Ships knocked down; top A-frame assembly ships as one piece bolted to the frame to reduce freight costs.

Specifications
Metric — Imperial
Width of slab storage base area on each side: 388 mm — 15.27 in
Working load limit (WLL): 2500 kg — 5511 lb
Net weight: 161 kg — 355 lb
Gross weight: 162 kg — 357 lb
Packaging dimensions: L 2440 x W 700 x H 260 mm — L 96 x W 28 x H 10 in

Technical specifications

• Product code: SSTR-2440
• Construction: 40 mm (1.57 in) square steel tubing, heavy-duty
• Protective features: rubber strips on bottom and back supports to prevent damage and marking
• Adjustability: uprights mount in slotted holes for full-depth adjustments
• Holddowns: full-length rubber strips with quick-release straps
• Finish: heavy-duty powder-coated
• Shipping configuration: ships knocked down; top A-frame assembly is one piece bolted to the frame to reduce freight costs
• Width of slab storage base area on each side: 388 mm (15.27 in)
• Working load limit (WLL): 2500 kg (5511 lb)
• Net weight: 161 kg (355 lb)
• Gross weight: 162 kg (357 lb)
• Packaging dimensions: L 2440 x W 700 x H 260 mm (L 96 x W 28 x H 10 in)
