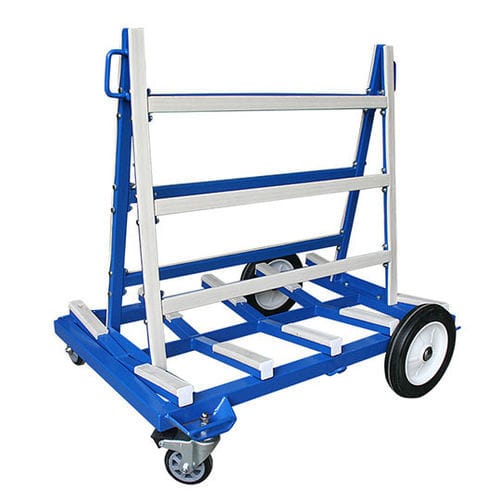

Transportation hand truck SBDS

handlinghigh load capacitywith brake

Overview
Designed for handling and transporting stone and slab materials in factories and on construction sites. Frame surfaces are fitted with protective rubber strips to reduce shifting and surface damage. Heavy-duty wheels provide easy maneuvering when fully loaded.

Features

• Replaceable rubber strips on bottom pads and frame face to protect slabs from scratches and movement
• Two swivel front wheels with brakes and two rigid pneumatic rear wheels; all wheels mounted outside the steel frame for stability
• Powder-coated finish for corrosion resistance in industrial environments

Specifications
Metric | Imperial
Width of slab storage base area on each side: 204.5 mm | 8"
Working load limit per side: 375 kg | 827 lb
Total working load limit: 750 kg | 1653 lb
Net weight: 61.7 kg | 136 lb
Gross weight: 62 kg | 136.7 lb
Packaging dimension: L 1200 x W 840 x H 330 mm | L 47.2 x W 33.1 x H 13 in
Overall dimensions: L 1220 x H 1145 x W 925 mm | L 48.0 x H 45.1 x W 36.4 in

Technical data

• Product code: SBDS
• Model: Slab Buggy Double Side
• Application: handling and transport of slabs in factories and on sites
• Finish: powder-coated
• Wheels: two swivel front wheels with brakes; two rigid pneumatic rear wheels
• Protective elements: replaceable rubber strips on bottom pads and frame face
• Mounting: wheels fitted outside the steel frame for improved stability
