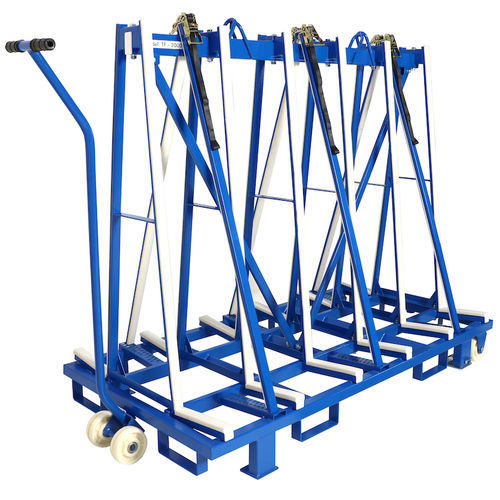

Handling rack TF2000

General
The TF2000 transport frame is designed for handling and moving stone slabs, vanity tops and similar workpieces in factories and on construction sites. The frame assembles and disassembles quickly (approx. 5 minutes by one operator). It can be moved manually using the counter-lever handle with wheels and lifted by forklift or overhead crane via dedicated points.

Features

• Welded steel frame with powder-coated finish
• Slabs rest on replaceable rubber profiles to prevent marks and scratches
• Secured with 6 locking bars and ratchet straps
• Two lifting hooks for overhead crane use
• Forklift pockets on all sides for multi-directional handling
• Counter-lever handle with wheels for manual movement of a loaded frame
• Support legs can be lowered when wheels are not required

Options
Hot-dip galvanizing and custom finishes available on request.

Safety and handling
Support legs must be lowered when transporting a loaded frame on a truck. Use certified lifting equipment and ensure load is balanced and straps are properly tensioned.

Specifications
Metric (mm-kg) | Imperial (in-lb)
Number of wheels: 4 | -
Number of straps: 6 | -
Width of slab storage base area (each side): 268 mm | 10.6 in
Length: 2000 mm | 78.7 in
Working load limit per side: 1250 kg | 2756 lb
Total working load limit (on wheels): 2500 kg | 5511 lb
Net weight (total frame): 182 kg | 401 lb
Gross weight: 188 kg | 414 lb
Packaging dimension: L 2000 x W 1020 x H 420 mm | L 78.7 x W 40.2 x H 16.5 in

Technical data

• Model: TF2000
• Application: transport and storage of slabs and vanity tops
• Assembly time (1 person): approx. 5 minutes
• Manual movement: counter-lever handle with wheels
• Forklift handling: pockets on all sides
• Securing: 6 locking bars and ratchet straps
• Protective elements: replaceable rubber profiles
• Finish: powder-coated (galvanizing on request)
