Handling rack TF3050

General

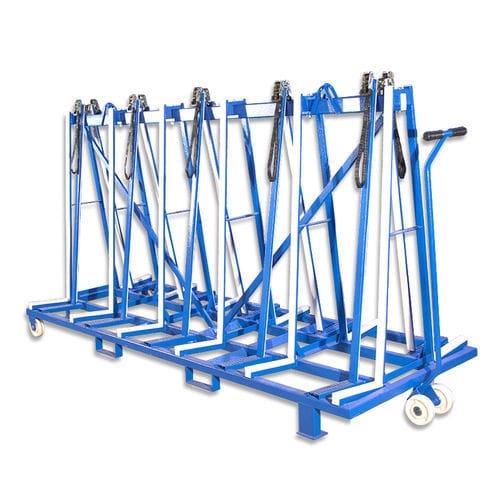

The Transport Frame TF3050 is designed for transporting porcelain slabs and other long, low and medium-height slabs. The frame is supplied with a powder-coated finish; hot-dip galvanizing is available on request. TF3050 units are fitted with locking bars and ratchet straps to secure loads and feature forklift receivers and crane hooking points for safe handling.

Features

• Frames delivered with bolts pre-installed for quick assembly.
• Easy assembly and disassembly on site.
• Stable structure designed to minimize the risk of slab tipping.
• Slabs rest on replaceable rubber profiles and are secured by six locking bars and ratchet straps.
• Two overhead crane hooking points for lifting.
• Two diagonal stays for structural rigidity.
• Built-in forklift receivers on two long sides for safe lifting.
• White replaceable rubber on base and uprights to prevent markings and scratches.
• Counter-lever handle with wheels allows manual movement even when loaded.
• Counter-lever handle can be used to jack the loaded frame and lower support legs when wheels are not required.
• Powder-coated finish provides durable surface protection; hot-dip galvanizing available as an option.

Options
Frames can be hot-dip galvanized and finished upon request.

Note
Support legs must be lowered when a loaded frame is transported on a truck.

Specifications (Metric | Imperial)
Width of slab storage base area on each side: 268 mm | 10.6"
Length: 3050 mm | 120"
Straps with each side: 5 pcs | 5 pcs
Working load limit per side: 1250 kg | 2,756 lb
Total working load limit on the wheels: 2500 kg | 5,511 lb
Net weight of the total frame: 239 kg | 527 lb
Net weight of caster handle: 8.7 kg | 19 lb
Net weight of the frame without caster handle: 230.3 kg | 508 lb
Gross weight (packaged): 245 kg | 540 lb
Packaging dimensions: L 3050 x W 1120 x H 430 mm | L 120" x W 44" x H 16.9"

Technical specifications

• Model: TF3050
• Designed for: porcelain slabs and other long, low and medium-height slabs
• Finish: powder-coated (hot-dip galvanized on request)
• Load securing: six locking bars and ratchet straps; replaceable rubber profiles
• Forklift handling: built-in forklift receivers on two long sides
• Crane handling: two hooking points for overhead crane
• Mobility: counter-lever handle with wheels; jack/lower support legs when wheels are not required
• Working load limit per side: 1250 kg
• Total working load limit on wheels: 2500 kg
• Net weight (total frame): 239 kg; net weight without caster handle: 230.3 kg
• Caster handle net weight: 8.7 kg
• Gross weight (packaged): 245 kg
• Packaging dimensions: L 3050 x W 1120 x H 430 mm
