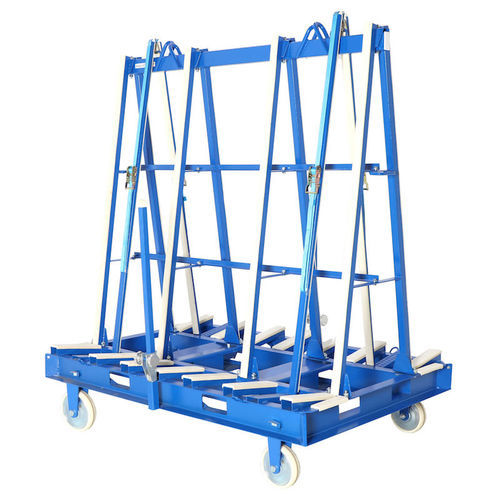

A-frame rack for joinery AF1850QP

General The AF1850QP A-frame transport rack is designed to deliver and handle heavy sheets of glass and stone on construction sites and in factories. It enables lifting the complete load together with the frame and facilitates movement across different floor levels on site.

Features

• Robust welded steel structure designed to prevent slab tipping.
• Load-bearing surfaces topped with rubber to protect materials from scratches and damage.
• Two lifting eyes on the top frame for crane handling and four lifting points on the base corners for truck and forklift operations.
• Handles positioned at the frame ends to assist manual manoeuvring.
• Wheels with brakes for secure positioning during operations.
• Four locking bars per frame mounted in slotted holes at the base to secure slabs.
• Powder-coated finish for corrosion resistance and extended service life.

Options Frames can be hot‑dip galvanized and finished upon request.

Specifications Metric — Imperial
Width of slab storage base area on each side: 295 mm — 11.6"
Working load limit: Fork End: 1100 kg; Fork Side: 2500 kg; Eyelet: 2500 kg; Bow‑Shackles: 2500 kg; Wheels: 2500 kg; Stationary: 4000 kg — 2425 lb; 5511 lb; 5511 lb; 5511 lb; 5511 lb; 8818 lb
Net weight: 246 kg — 542 lb
Gross weight: 252 kg — 556 lb
Packaging dimension: L1850 x W1300 x H360 mm — L72.8" x W51.2" x H14.2"

Product code / technical details

• Product code: AF1850QP
• Model: A-frame 1850‑QP
• Material: welded steel frame with rubber protection on contact surfaces
• Number of locking bars: 4 per frame
• Lifting points: 2 top eyes; 4 corner base points
• Wheels: with integrated brake pins
