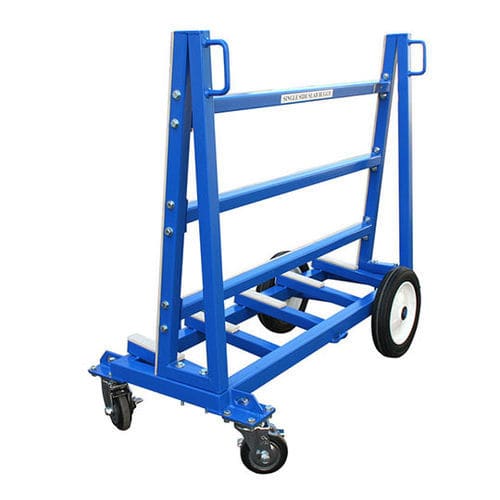

Transportation hand truck SBSS

handlingwith brake

General
Ideal for moving and storing slabs and sheet materials inside factories and on construction sites. Frame contact areas are rubber-topped for scratch protection. Heavy-duty swivel and pneumatic wheels provide controlled maneuverability when fully loaded. Overall design places wheels outside the chassis for improved stability.

Features

• Rubber topping on frame surfaces and underside to prevent scratches
• Swivel wheels with hinge bolts for reliable steering
• Pneumatic rear wheels for easier control on uneven ground
• Wheel placement outside chassis to enhance stability
• Durable electrostatic powder coating

Specifications
Metric — Imperial
Width of slab storage base area on each side: 204.5 mm — 8"
Working load limit (WLL): 600 kg — 1323 lb
Net weight: 44.8 kg — 98.8 lb
Gross weight: 45 kg — 99.2 lb
Packaging dimension: L 1180 x W 560 x H 330 mm — L 46.5" x W 22" x H 13"

Product details / Technical specifications

• Product name: Slab Buggy Single Side
• Product code / Model: SBSS
• Brand: Aardwolf
• Front wheels: 2 x 127 mm with brakes
• Rear wheels: 2 x pneumatic
• Wheel position: wheels mounted outside chassis
• Frame protection: rubber topping on contact surfaces
• Finish: electrostatic powder coating
• Overall dimensions (L x H x W): 1220 mm x 1145 mm x 664 mm
• Width of slab storage base area on each side: 204.5 mm (8")
• Working load limit: 600 kg (1323 lb)
