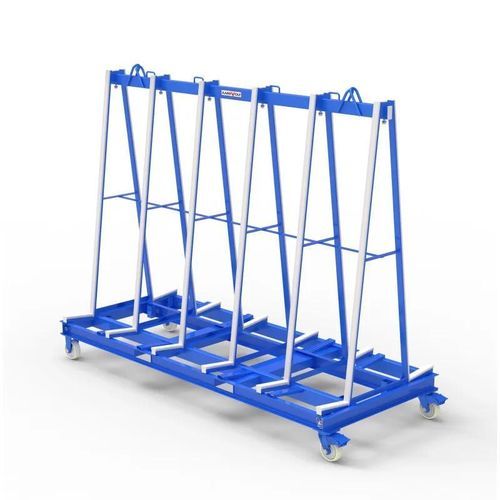

A-frame rack for joinery XL FS-2740-1850A-6

Overview
The Universal Frame XL – 6 A-Frames (Product Code: FS-2740-1850A-6) is designed for safe storage, transport and handling of longer glass sheets, stone slabs and large-format panels commonly used in architectural, commercial and high-end residential projects. The 2,740 mm frame length and 1,850 mm working A-frame height ensure stable support for extended material formats while remaining compatible with standard handling equipment.

Key Features

• Extended frame length of 2,740 mm to accommodate longer slabs and large-format sheet materials.
• 6 A-frame support configuration providing multiple contact points for even load distribution.
• Heavy-duty welded frame construction for demanding material handling applications.
• Integrated forklift pockets for efficient loading and unloading operations.
• Lifting eyelets for crane-assisted positioning when required.
• Ø150 mm heavy-duty castor wheels with two wheels fitted with safety brakes for secure positioning during storage and handling.

Specifications

• Product Code: FS-2740-1850A-6
• Frame Length: 2740 mm | 107.9 in
• Working A-Frame Height: 1850 mm | 72.8 in
• Base Width: 1100 mm | 43.3 in
• A-Frame Supports: 6
• Castor Wheel Diameter: Ø150 mm | Ø5.9 in
• Wheels with Brakes: 2
• Working Load Limit (WLL): 1,500 kg | 3,307 lb

Technical specifications

• Product Code: FS-2740-1850A-6
• Frame construction: heavy-duty welded steel
• Frame Length: 2740 mm
• Working A-Frame Height: 1850 mm
• Base Width: 1100 mm
• A-Frame Supports: 6
• Castor Wheel Diameter: Ø150 mm (two wheels with safety brakes)
• Integrated forklift pockets and lifting eyelets for handling
• Working Load Limit (WLL): 1,500 kg
