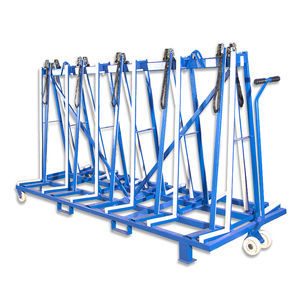

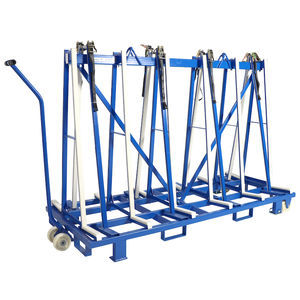

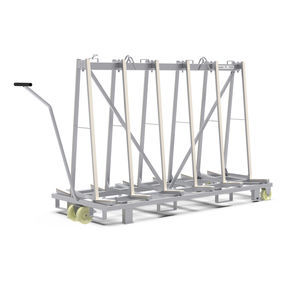

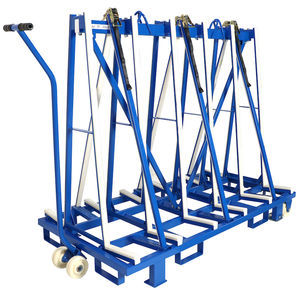

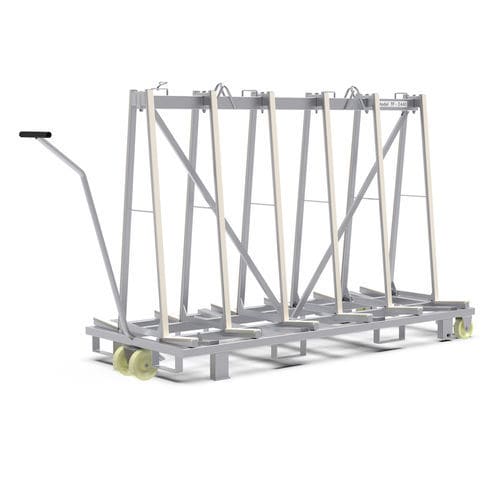

Handling rack TF2440G

General
Flexibility, handiness and utility characterize the transport frame TF2440G. It simplifies storage, preservation and movement of large slab materials between sites. Compatible with forklifts and overhead cranes to ensure secure handling.

Applications

• Transport and on-site handling of large slabs and plate materials
• Loading and unloading with forklift or overhead crane
• Temporary protected storage and movement of fragile panels

Features

• Sturdy, safe structure designed to eliminate tipping risk
• Slabs rest on rubber profiles and are secured with 8 adjustable locking bars
• Eight locking bars mounted in slotted holes at the base
• Two hook points for overhead-crane lifting
• Built-in locking/release wheels
• Counter-lever handle with wheels for manual movement
• Turnbuckles to improve material retention
• Safety hooks for efficient crane use
• Galvanised finish

Specifications
Metric | Imperial
Number of wheels: 4 pcs | 4 pcs
Straps with each unit: 4 pcs | 4 pcs
Width of each side: 268 mm | 10.6"
Length: 2440 mm | 96"
Working load limit per side: 1250 kg | 2756 lb
Working load limit on the wheels: 2500 kg | 5511 lb
Net weight of the total frame: 211 kg | 465 lb
Net weight of caster handle: 8.7 kg | 19 lb
Net weight of the frame without caster handle: 197.3 kg | 435 lb
Gross weight: 217 kg | 478 lb
Package dimension: L.2450xW.1020xH.420 mm | L.96.5"xW.40.2"xH.16.5"

Product data

• Model: TF2440G
• Product code: TF2440G
• Brand: Aardwolf
• Type: Transport frame (chevalet roulant)
• Images available: main image + 2 secondary images
