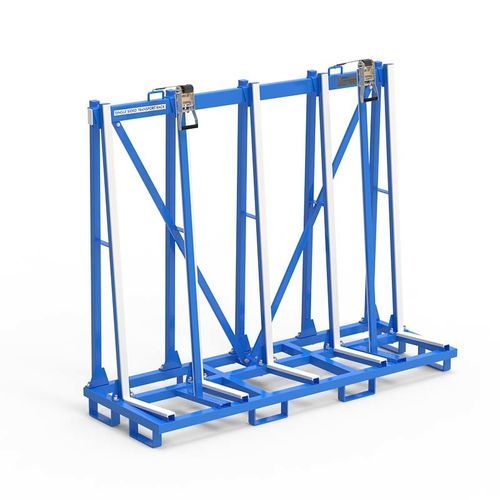

Materials handling transport rack SSTR-2000

transportfor transportfor long, narrow loads

General
The Aardwolf Single-side Transport Rack SSTR-2000 is designed to transport fabricated products of various sizes, providing on-vehicle storage and safe handling for industrial logistics.

Features

• Construction: 40 mm (1.57") square steel tubing.
• Protective rubber strips mounted on bottom and back supports to prevent damage and marking.
• Adjustable uprights mount in slotted holes for full-depth configuration.
• Quick-release straps for secure load fastening and fast release.
• Powder-coated finish for corrosion resistance.
• Shipping configuration: ships knocked down; top A-frame assembly is one piece bolted to the frame to reduce freight volume.

Specifications
Metric / Imperial
Width of slab storage base area on each side: 388 mm / 15.27"
Working load limit: 2500 kg / 5511 lb
Net weight: 137 kg / 302 lb
Gross weight: 138 kg / 304 lb
Packaging dimensions: L.2000 x W.700 x H.260 mm / L.79" x W.28" x H.10"

Technical characteristics

• Product Code: SSTR-2000
• Width of slab storage base area on each side: 388 mm (15.27")
• Working load limit (WLL): 2500 kg (5511 lb)
• Net weight: 137 kg (302 lb)
• Gross weight: 138 kg (304 lb)
• Packaging dimensions: L.2000 x W.700 x H.260 mm (L.79" x W.28" x H.10")
• Construction material: 40 mm (1.57") square steel tubing
• Protection: rubber strips on bottom and back supports
• Adjustment: uprights with slotted holes for full-depth adjustment
• Straps: quick-release straps
• Finish: powder-coated
• Shipping configuration: ships knocked down; top A-frame assembly bolted to frame
