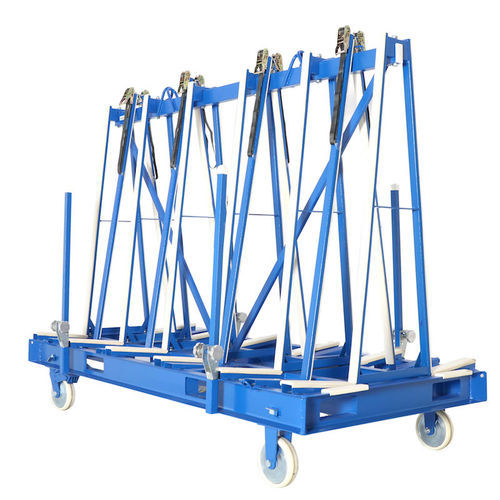

A-frame rack for joinery AF2440QP

General
The AF2440QP A-frame is a heavy-duty transport rack designed to move, store and lift large glass and stone panels on construction sites and industrial facilities. It allows loading, craning and floor-to-floor handling of complete loads while protecting slab surfaces.

Features

• Robust welded frame with rubber-topped load surfaces to prevent scratches.
• Two top lifting eyes for crane handling and four corner lifting points for safe load transfer.
• Fork pockets and fork-side lifting options for forklift handling (fork end and fork side capacities specified below).
• Wheels with brakes to facilitate on-site rotation and positioning.
• Four locking bars per frame mounted in slotted holes at the base to secure panels during transport.
• Powder-coated finish; optional hot-dip galvanizing available on request.

Option
Frames can be hot-dip galvanized and finished to customer requirements on request.

Specifications
Metric | Imperial
Width of slab storage base area on each side: 323 mm | 12.7 in
Working load limit: Fork End: 2000 kg; Fork Side: 3000 kg; Eyelet: 3000 kg; Bow Shackles: 3000 kg; Wheels: 2500 kg; Stationary: 4000 kg | 4409 lb; 6614 lb; 6614 lb; 6614 lb; 5511 lb; 8818 lb
Net weight: 281 kg | 619 lb
Gross weight: 287 kg | 633 lb
Packaging dimensions: L2450 x W1240 x H360 mm | L96.5 x W48.8 x H14.2 in

Technical details

• Product code / model: AF2440QP
• Intended use: transport and lifting of heavy glass and stone slabs on site and between floors
• Surface protection: powder-coated finish (option: hot-dip galvanizing)
• Included items: rubber-topped load surfaces, two lifting eyes, four corner lifting points, fork pockets, wheels with brakes, four locking bars per frame
• Manufacturer / brand: Aardwolf
