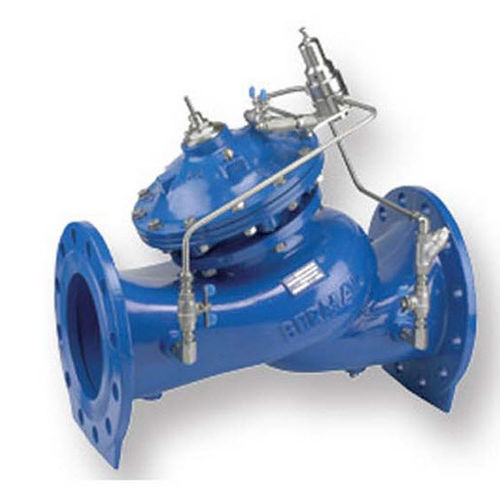

Water pressure regulator and reducer 720

for potable waterdiaphragmindustrial

Product overview
Hydraulically operated pressure reducing control valve model 720 (700 Sigma Series) that reduces a higher upstream pressure to a lower constant downstream pressure, regardless of fluctuating demand or varying upstream pressure. Designed for waterworks, buildings & construction and irrigation applications.

Features & Benefits

• Excellent anti-cavitation properties
• Wide flow range
• High stability and accuracy
• Drip-tight sealing

Double chamber design

• Moderated valve reaction
• Protected diaphragm
• Optional operation in very low pressure
• Moderated closing curve

Additional design attributes

• Flexible design - easy addition of features
• Obstacle-free flow path
• V-Port throttling plug (optional) - very stable at low flow
• High quality materials suitable for potable water
• In-line serviceable - easy maintenance
• Certified to functional and drinking water standards: EN-1074, NSF-ANSI 61-372, WRAS, AS 5081 and others

Typical Applications

• Pressure management - NRW leakage control
• National water systems pressure control
• Municipal systems - reducing pressure at potable water connections to buildings and structures
• Highrise and midrise residential buildings - reducing pressure at the pressure zone inlet

Characteristics / Technical specifications

• Product type: Pressure reducing valve
• Model / designation: 720 (700 Sigma Series)
• Operation: Hydraulically operated, double-chamber actuator
• Anti-cavitation: Designed for excellent cavitation resistance
• Flow path: Obstacle-free flow path; optional V-Port throttling plug for stable low-flow control
• Serviceability: In-line serviceable actuator for easy maintenance
• Materials: High quality materials suitable for potable water and industrial applications
• Approvals / certifications: EN-1074, NSF-ANSI 61-372, WRAS, AS 5081 and other regional standards
• Typical segments: Waterworks, Buildings & Construction, Irrigation
