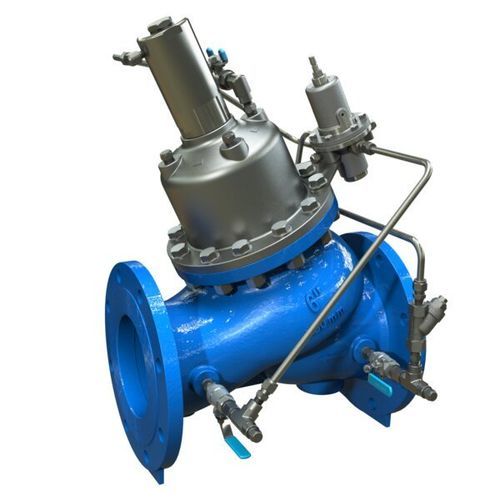

Water pressure relief valve 830high-pressurefor water systemsstainless steel
Add to favorites
Compare this product
Characteristics
- Fluid
- for water
- Applications
- high-pressure, for water systems
- Body material
- stainless steel, brass
- Other characteristics
- flange, hydraulic, hydraulically-operated, piston, in-line
- Controlled pressure
40 bar
(580.2 psi)- DN
Min.: 40 mm
(1.575 in)Max.: 500 mm
(19.685 in)
Description
Description
Hydraulically operated pressure relief / sustaining control valve capable of two distinct functions: installed in-line it sustains a minimum pre-set upstream (back) pressure regardless of fluctuating flow or varying downstream pressure; installed as a branched circulation valve it relieves excessive line pressure when above the maximum pre-set.
Features & Benefits
Typical Applications
Product information & context
Technical specifications
Hydraulically operated pressure relief / sustaining control valve capable of two distinct functions: installed in-line it sustains a minimum pre-set upstream (back) pressure regardless of fluctuating flow or varying downstream pressure; installed as a branched circulation valve it relieves excessive line pressure when above the maximum pre-set.
Features & Benefits
- Piston-actuated design — suitable for high-pressure service
- Line pressure driven — independent operation
- Elegant simplicity:
- Cost‑effective
- Easy to maintain
- Minimal external accessories
- In-line serviceable — straightforward maintenance
- Double-chamber design:
- Moderated valve reaction
- Moderated closing curve
- Flexible design — easy addition of features
- Semi-straight flow — non-turbulent flow pattern
- Stainless steel raised seat — cavitation damage resistant
- Obstacle-free full bore — uncompromising reliability
- V‑Port throttling plug (optional) — very stable at low flow
Typical Applications
- Water delivery systems — prioritizing upstream over downstream demand
- Pumping stations — ensure operating point on pump curve
- Pumping stations — circulation during low demand
- Filtration systems — sustaining minimum pressure for efficient backflush
Product information & context
- Model: 830
- Series: 800 Series
- Segment: Waterworks
Technical specifications
- Product type: Pressure relief / sustaining valve (hydraulically operated)
- Operation: Line pressure driven, hydraulically operated
- Primary functions: Sustain minimum upstream (back) pressure when in-line; relieve excessive line pressure when installed as branched circulation valve
- Actuation: Piston actuated
- Design: Double-chamber
- Flow pattern: Semi-straight flow, obstacle-free full bore
- Seat: Stainless steel raised seat (cavitation resistant)
- Optional: V‑Port throttling plug for stable low-flow control
- Maintenance: In-line serviceable
- Service: Suited for high-pressure service
