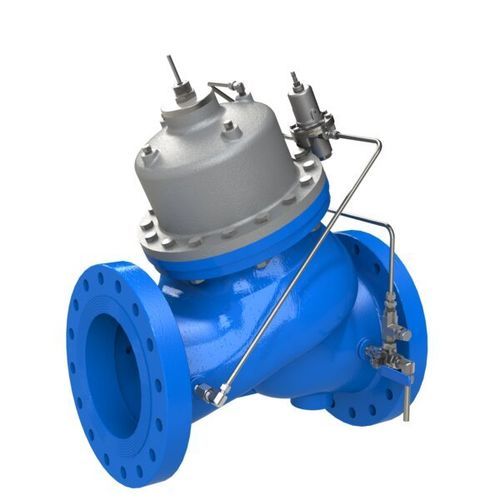

Water pressure relief valve 83Qfor water systemsstainless steelpiston
Add to favorites
Compare this product
Characteristics
- Fluid
- for water
- Applications
- for water systems
- Body material
- stainless steel
- Other characteristics
- hydraulic, hydraulically-operated, hydraulic piston, piston, in-line, quick
- Controlled pressure
40 bar
(580.2 psi)- DN
Min.: 40 mm
(1.575 in)Max.: 500 mm
(19.685 in)
Description
Product Overview
This hydraulically operated, piston‑actuated quick pressure relief valve relieves excessive system pressure when pressure rises above a preset value. The valve opens fully on pressure surge for immediate, repeatable response and provides smooth, drip‑tight closing.
Features & Benefits
Typical Applications
Documentation (available)
Technical specifications
This hydraulically operated, piston‑actuated quick pressure relief valve relieves excessive system pressure when pressure rises above a preset value. The valve opens fully on pressure surge for immediate, repeatable response and provides smooth, drip‑tight closing.
Features & Benefits
- Hydraulically operated, piston actuated — suitable for high‑pressure service
- Line‑pressure driven for independent operation
- Simple, low‑accessory design for straightforward maintenance
- In‑line serviceable to reduce downtime
- Double‑chamber design for moderated reaction and closing curve
- Semi‑straight flow / obstacle‑free full bore to minimise turbulence and pressure loss
- Stainless steel raised seat for cavitation resistance
- Optional V‑Port throttling plug for stable performance at low flow
Typical Applications
- Pressure‑reducing systems — protection against pressure rise during sudden demand stoppage or failures
- Older pipe networks — installed at sensitive points and line ends to protect against bursts during pressure surges
- Pumping stations — protection against water hammer and cavitation, optimisation of pump operation
Documentation (available)
- 83Q - Product Page (Metric, English)
- 83Q - Product Page (Imperial, English)
- 83Q - IOM (Installation & Operation Manual, English)
- 800 Series - Ordering Guide (English)
- 800 Series - Engineering (English)
Technical specifications
- Model: 83Q
- Series: 800 Series
- Operation: Hydraulically operated, piston actuated
- Function: Quick pressure relief when system pressure exceeds preset value; full‑open response to surge; smooth drip‑tight closing
- Design: Double‑chamber, in‑line serviceable, semi‑straight flow, obstacle‑free full bore
- Materials / key parts: Stainless steel raised seat for cavitation resistance
- Optional feature: V‑Port throttling plug for stable low‑flow performance
- Service: High‑pressure applications; line‑pressure driven for independent operation
- Maintenance: In‑line serviceable; minimal external accessories
Catalogs
No catalogs are available for this product.
See all of BERMAD CS Ltd‘s catalogsExhibitions
Meet this supplier at the following exhibition(s):

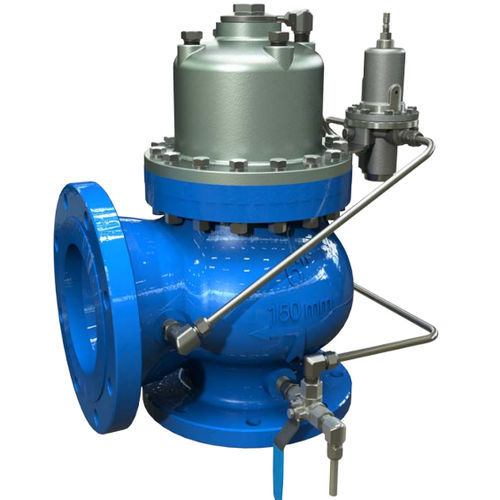

Other BERMAD CS Ltd products
