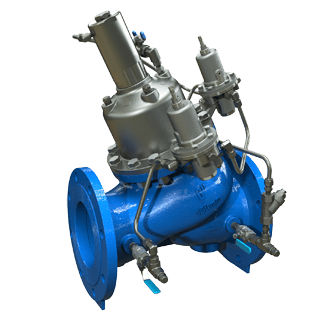

Globe valve WW-823

hydraulically-operatedpressure-reducingpressure sustaining

Overview
Hydraulically operated control valve combining independent pressure sustaining and pressure reducing functions. It sustains a pre-set minimum upstream pressure regardless of downstream fluctuations, and prevents downstream pressure from exceeding a pre-set maximum irrespective of upstream surges.

Features & Benefits

• Robust piston-actuated structure – suitable for high-pressure service
• Line-pressure driven – independent control
• Elegant simplicity
  • Cost effective
  • Easy maintenance
  • Minimal external accessories
• In-line serviceable – easy maintenance
• Double-chamber design
  • Moderated valve reaction
  • Moderated closing curve
• Flexible design – easy addition of features
• Semi-straight flow – non-turbulent flow
• Stainless Steel raised seat – cavitation damage resistant
• Obstacle-free, full-bore – uncompromising reliability
• V-Port throttling plug (optional) – very stable at low flow

Typical Applications

• Municipal water systems – reducing pressure at potable water connections
• Water delivery networks – prioritizing upstream over downstream demand
• Distribution systems – maintaining upstream pressure during pressure drops

Technical Specifications

• Model: 823
• Series: 800 Series
• Manufacturer / Brand: BERMAD
• Operation: Hydraulically operated control valve with independent pressure sustaining and pressure reducing functions
• Primary functions: Sustain minimum pre-set upstream pressure; prevent downstream pressure exceeding maximum pre-set level
• Actuation: Piston actuated, line pressure driven
• Design: Double-chamber design, semi-straight flow, obstacle-free full-bore
• Seat material: Stainless Steel raised seat (cavitation resistant)
• Optional features: V-Port throttling plug for stable low-flow control
• Serviceability: In-line serviceable for easy maintenance
• Typical service: High-pressure waterworks and municipal water distribution
