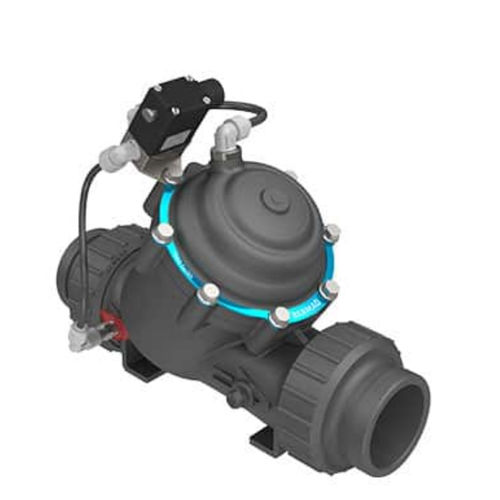

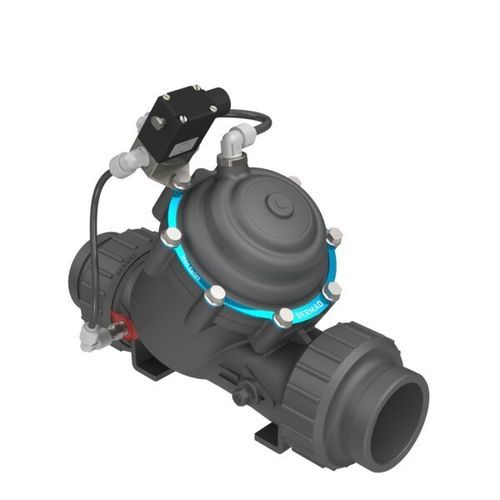

Diaphragm valve 1010

hydraulicflow controlin-line

Short description
Hydraulically operated, diaphragm-actuated solenoid controlled on/off valve that opens fully or shuts off in response to an electrical signal. Available in Normally Open (NO), Normally Closed (NC) or LATCH configurations.

Features & Benefits

• Easy set-up
  • Super light weight
  • Line pressure driven - no external power needed
  • Easy pressure setting - on site or pre-ordered
  • Adaptable on-site to a wide range of end connections
• Simple and durable design
  • Excellent cavitation resistance
  • Highly durable construction and materials - no rust
  • Unitized actuator assembly - remove, replace, restore
  • In-line serviceable - no need to remove from line
• All benefits of a diaphragm-actuated control valve
  • Wide flow range
  • Low-flow stability
  • Drip-tight sealing
  • Obstacle-free flow path
  • Easy addition of features

Typical Applications

• Water reservoirs - serves as a block valve in tank filling systems
• Water reservoirs - bypass for direct supply during reservoir maintenance
• Filtration systems - channeling flow during backflushing in automatic filtration systems

Technical specifications

• Model: 1010
• Product type: Solenoid controlled on/off valve
• Series: 1000 ES/EN
• Operation: Hydraulically operated, diaphragm-actuated, solenoid controlled
• Available configurations: Normally Open (NO), Normally Closed (NC), LATCH
• Actuation: Line pressure driven (no external power required for hydraulic operation)
• Serviceability: Unitized actuator, in-line serviceable (no removal from line required)
• Construction: Corrosion-resistant, highly durable materials (no rust)
• Design features: Excellent cavitation resistance, wide flow range, drip-tight sealing, obstacle-free flow path
• Typical segment: Waterworks (potable water, reservoirs, filtration)
• Page barcode / internal code: 30649
