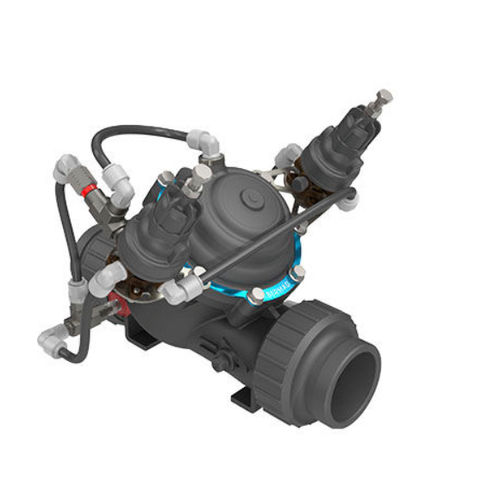

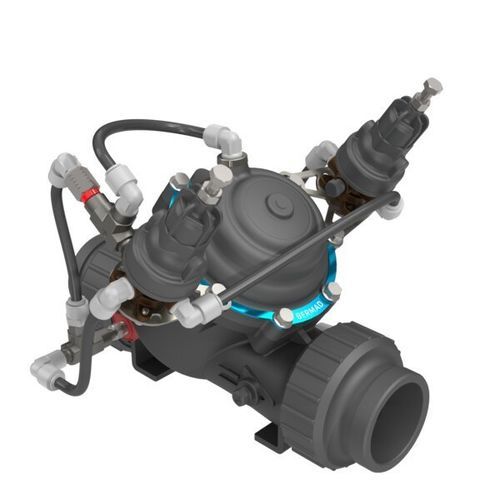

Water pressure regulator and reducer 1023

for potable waterdiaphragmfor water systems

Overview
Hydraulically operated control valve with independent pressure-sustaining and pressure-reducing functions. Sustains a minimum preset upstream pressure regardless of fluctuating flow or downstream pressure, and prevents downstream pressure exceeding a preset maximum regardless of flow variations or excessive upstream pressure.

Features — Easy set-up

• Super lightweight
• Line-pressure driven — no external power required
• Easy pressure setting — on-site or pre-ordered
• Adaptable on-site to a wide range of end connections

Features — Simple and durable design

• Excellent cavitation resistance
• Highly durable, corrosion-resistant materials
• Unitized actuator — remove, replace, restore
• In-line serviceable — no need to remove from line

All the benefits of a diaphragm-actuated control valve

• Wide flow range
• Low-flow stability
• Drip-tight sealing
• Obstacle-free flow passage
• Easy addition of optional features

Typical Applications

• Municipal systems — Reducing pressure at potable water connections to buildings and structures
• Water delivery systems — Prioritizing upstream over downstream demand
• Water delivery systems — Maintaining upstream pressure during pressure drops
• Leakage reduction — Minimizing non-revenue water
• Residential water supply — Protecting pipes, fixtures and appliances

Technical characteristics / specifications

• Series: 1000 ES/EN
• Model: 1023
• Product type: Pressure reducing & sustaining valve, diaphragm-actuated
• Operation: Hydraulically operated, line-pressure driven (no external power)
• Actuation: Diaphragm-actuated; unitized actuator for easy service
• Serviceability: In-line serviceable (no removal from line required)
• Materials: Corrosion-resistant construction; high durability
• Cavitation resistance: Excellent
• Sealing: Drip-tight
• Flow characteristics: Wide flow range; stability at low flow; obstacle-free passage
• Page product identifier (as shown on page): 1023 (product code) — Internal reference: 30663
