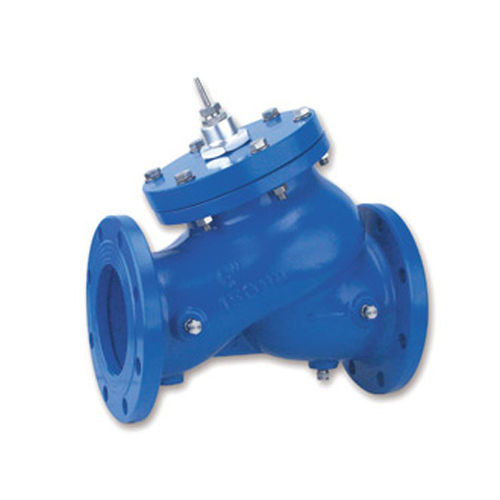

Membrane check valve WW-80N

high-pressurestainless steelhydraulic

Overview
The Model 80N is a non-slam lift-type check valve designed to permit flow in one direction and close drip-tight to prevent backflow. Built for pumping, booster and waterworks applications, it offers full-bore flow and a stainless-steel raised seat to resist cavitation.

Features & Benefits

• Non-slam closing – reduces system surge and water hammer
• In-line serviceable – simplified maintenance without pipeline removal
• Modular/flexible design – easy addition of options
• Y-pattern or angle wide-body – minimized pressure loss
• Semi-straight flow – reduced turbulence
• Stainless-steel raised seat – cavitation damage resistant
• Obstacle-free full bore – reliable flow capacity

Typical Applications

• Check valve for pumping and booster stations
• Prevention of backflow and reduction of surge in uphill and vertical pipelines
• One-way flow assurance in waterworks and industrial water systems

Documentation (available)
Product pages (metric and imperial), 800 Series Ordering Guide, 800 Series Engineering documentation (PDFs available on product page).

Technical specifications

• Model: 80N
• Series: 800 Series
• Type: High-pressure lift-type check valve (non-return)
• Patterns: Y-pattern or angle pattern (wide-body)
• Flow: Semi-straight flow; obstacle-free full bore
• Seat: Stainless-steel raised seat (cavitation resistant)
• Serviceability: In-line serviceable
• Operation: Non-slam closing (drip-tight)
• Typical segments: Waterworks, pumping & booster stations, potable water, industrial water systems
• Internal site barcode (product identifier): 73707
