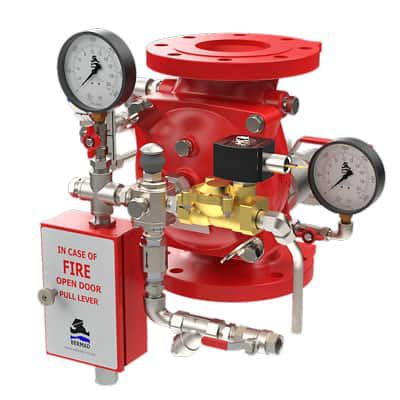

Diaphragm valve FP-400E-2M

hydraulicelectrically-operatedfor water

Product Overview
The BERMAD FP-400E-2M is an elastomeric, hydraulic, line‑pressure operated deluge valve designed for advanced fire protection systems. It is electrically controlled by a 2‑way solenoid valve and latches open when energized until a local manual reset is performed. An optional valve position indicator can include a limit switch for integration with Fire & Gas monitoring systems. The 400E-2M is suitable for open‑nozzle water or foam discharge systems and can be supplied with electrical components for hazardous locations.

Safety and reliability

• Proven simple design with fail‑safe actuation
• Single‑piece elastomer seal (VRSD technology)
• Obstacle‑free, uninterrupted flow path
• No mechanical moving parts in the flow body
• 2‑way solenoid valve UL429A listed
• Holds open when activated; requires local reset

Quick and easy maintenance

• Designed for high reliability and straightforward maintenance
• In‑line serviceable
• Fast, tool‑accessible cover removal for quick access

Typical applications

• Electric fire detection systems with control panels
• Automatic deluge (water spray) systems
• Corrosive water systems
• Foam deluge installations

Additional features

• ZS: Limit switch assembly
• W: Water motor alarm
• PS: Pressure switch
• I: Visual valve position indicator
• PI: Pressure gauge*
• DV: Drain valve*
• DC: Automatic drip check valve*
• AV: 3‑way alarm test valve*

Specifications / Technical data

• Model: FP-400E-2M
• Series: 400E
• Type: Elastomeric, hydraulic, line‑pressure operated deluge valve
• Actuation: 2‑way solenoid valve (UL429A listed)
• Operation: Latches open when activated; requires local reset
• Flow path: Obstacle‑free, uninterrupted
• Design technology: Single‑piece elastomer (VRSD)
• Serviceability: In‑line serviceable; fast cover removal
• Optional equipment: Valve position indicator with limit switch, PI, DV, DC, AV, W, PS, ZS
• Suitable for: Water or foam deluge systems; corrosive water systems; hazardous locations with appropriate electrical components
• Typical use cases: Deluge systems for high‑risk areas such as petrochemical plants, power stations and high‑rise buildings
