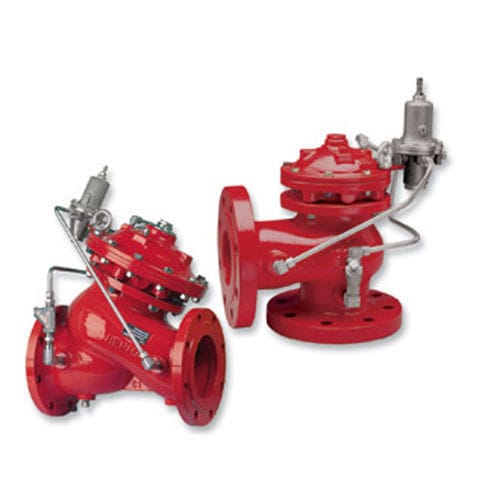

Water pressure relief valve FP-730-UF

fire protectionpilot-operatedhigh-capacity

Overview
The BERMAD FP-730-UF is a pilot-operated pressure relief valve that prevents overpressure by maintaining a preset maximum system pressure despite upstream pressure fluctuations and peaks. UL-listed (up to 350 psi) and FM-approved in accordance with NFPA-20, it is designed for demanding industrial and fire-protection installations including refineries, petrochemical complexes, tank farms, high-rise buildings, aviation and airports, and marine and on-shore facilities.

Safety and reliability

• Efficient straight-through (Y-pattern) flow
• Quiet, smooth operation with quick response
• Minimal power requirement for pilot operation
• High discharge capacity suitable for fire-protection systems
• Designed for high operational reliability

Quick and easy maintenance

• In-line serviceable design for on-site repair
• Fast and simple cover removal to reduce downtime

Typical Applications

• Surge prevention on pump start-up
• Foam concentrate recirculation
• Centralized thermal pressure relief

Technical specifications

• Brand: BERMAD
• Model: FP-730-UF
• Series: 700E
• Type: Pilot-operated relief valve
• Body: Y-pattern straight-through
• Approvals: UL-listed up to 350 psi; FM-approved in accordance with NFPA-20
• Function: Maintains preset maximum system pressure regardless of upstream fluctuations
• Features: High discharge capacity; in-line serviceable; quiet operation; quick response; minimal pilot power requirement
