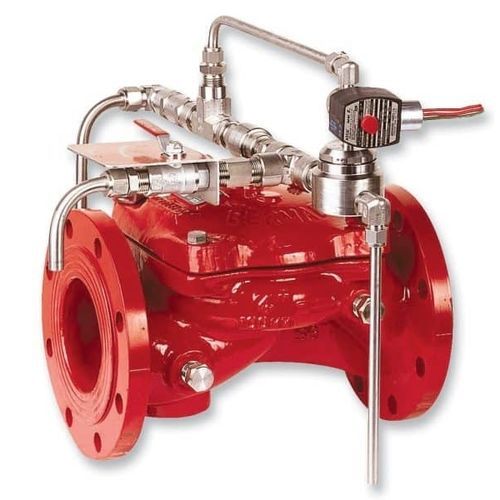

Diaphragm valve FP-400E-3D

electrically-operatedshut-offregulating

Product Overview
The BERMAD model FP-400E-3D is an elastomeric, hydraulic line pressure operated deluge valve designed for advanced fire-protection systems. It is actuated by a 3-way solenoid valve for electrical fire detection systems and can be supplied with electric components for hazardous locations. An optional valve position indicator may include a limit switch for Fire & Gas monitoring systems. The valve is intended for open-nozzle water or foam discharge systems.

Features & Benefits

• Proven simple design with fail-safe actuation principle.
• Single-piece elastomeric diaphragm seal (VRSD technology).
• Obstacle-free, uninterrupted flow path; no mechanical moving parts in flow path.
• Includes option for UL429A listed 3-way solenoid valve where specified.
• Optional valve position limit switches for monitoring and control integration.
• Designed to comply with relevant industry standards.

Quick and Easy Maintenance

• In-line serviceable construction for reduced downtime.
• Fast and simple cover removal for inspection and service.
• Components accessible for routine maintenance.

Typical Applications

• Electrical fire detection systems with control panels.
• Remote-control water spray and deluge systems.
• Foam fire-fighting installations.
• Systems handling corrosive water (configured accordingly).

Additional Features / Options

• ZS: Limit Switch Assembly.
• W: Water Motor Alarm.
• PS: Pressure Switch (PS-10 or PS-40).
• I: Visual Valve Position Indicator.
• PI: Pressure Gauge (optional).
• DV: Drain Valve (optional).
• DC: Automatic Drip Check Valve (optional).
• AV: 3-way Alarm Test Valve (optional).

Technical specifications

• Model: FP-400E-3D.
• Series: 400E.
• Type: Elastomeric, hydraulic line pressure operated deluge valve, On-Off.
• Actuation: 3-way solenoid valve (electrically controlled); UL429A listed where specified.
• Operation principle: Single-piece elastomeric diaphragm (VRSD) with hydraulic line pressure operation.
• Flow path: Obstacle-free, uninterrupted flow; no mechanical moving parts in the flow path.
• Construction: In-line serviceable; fast cover removal for maintenance.
• Monitoring: Optional valve position indicator with limit switch for Fire & Gas systems.
• Applications: Open-nozzle water or foam discharge; compatible with electrical components for hazardous locations.
