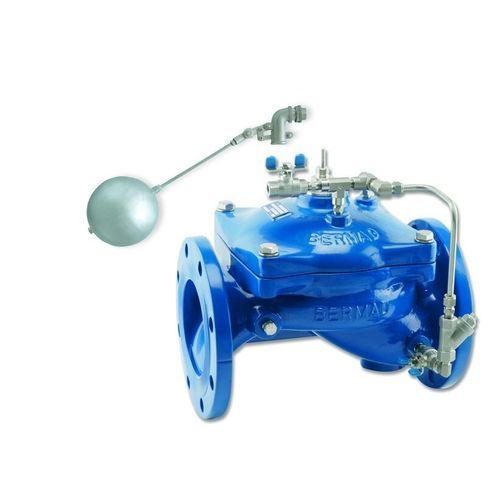

Globe valve 450-60

hydraulically-operatedfloatlevel control

Overview
Hydraulically operated control valve that regulates tank/reservoir filling and maintains a set water level using a hydraulically controlled modulating horizontal float. Designed to provide stable level control under variable demand conditions.

Key features & benefits

• Line-pressure driven — independent operation
• Modulating hydraulic float control
  • Always-full operation to maximize reservoir utilization
  • Drip-tight sealing
• Flexible design allowing easy addition of options
• Advanced globe, hydro-efficient design
  • Unobstructed flow path
  • Single moving part
  • Non-turbulent flow
  • High flow capacity
• Fully supported and balanced diaphragm
  • Excellent low-flow regulation
  • Progressive valve closing
  • Prevents diaphragm distortion
• In-line serviceable
  • External installation
  • Easy maintenance
  • Minimal downtime

Typical applications

• Level control for small to medium water tanks
• Always-full operation to maximize reservoir volume use
• Potable water, fire protection and grey water systems

Product context

• Model: 450-60
• Series: 400 Series
• Segments: Buildings & Construction; Waterworks

Technical specifications

• Product type: Hydraulically operated level control valve
• Control method: Modulating horizontal float (hydraulic)
• Operation: Line-pressure driven — independent
• Design: Advanced globe, hydro-efficient with unobstructed flow path
• Diaphragm: Fully supported and balanced for improved low-flow regulation and to prevent distortion
• Serviceability: In-line serviceable for external installation and easy maintenance
• Performance: Drip-tight sealing; single moving part; non-turbulent flow; high flow capacity
• Typical applications: Tank/reservoir filling and level control for potable water, fire protection and grey water
• Internal product code (barcode): 30455
